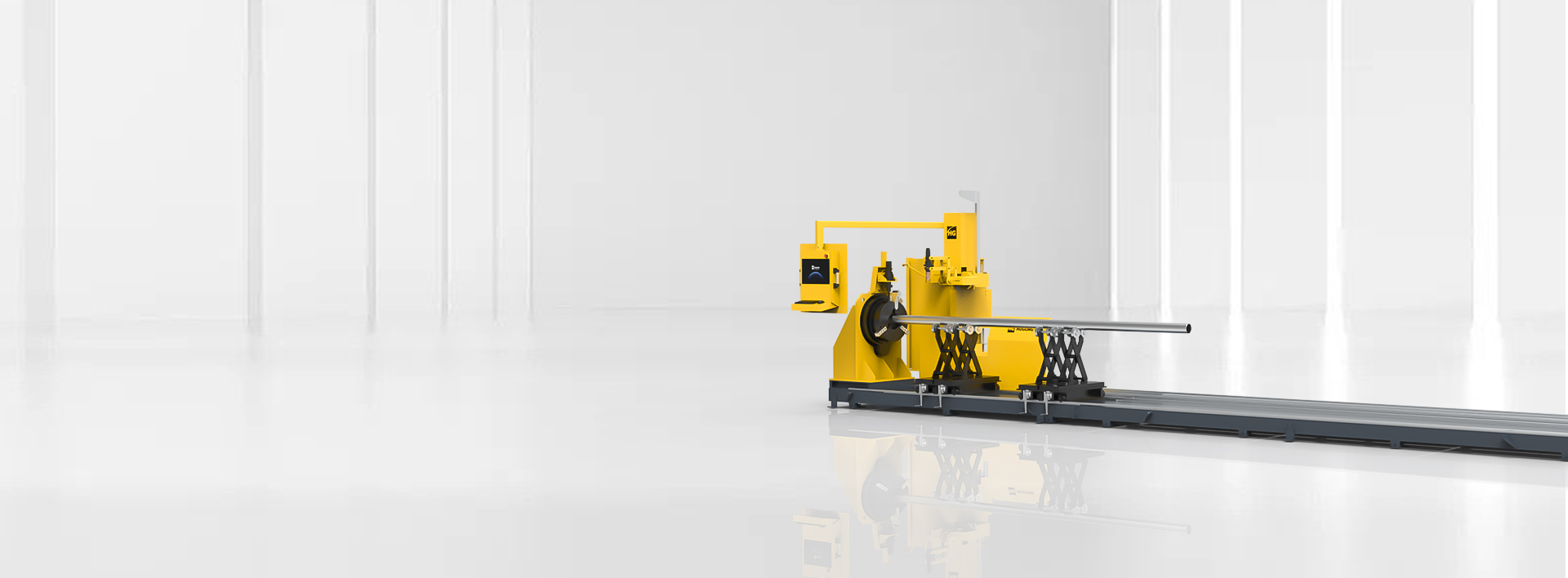

HGPIPE SERIES
HEAVY DUTY PLASMA CUTTING MACHINE FOR ROUND AND HUGE PIPELINE

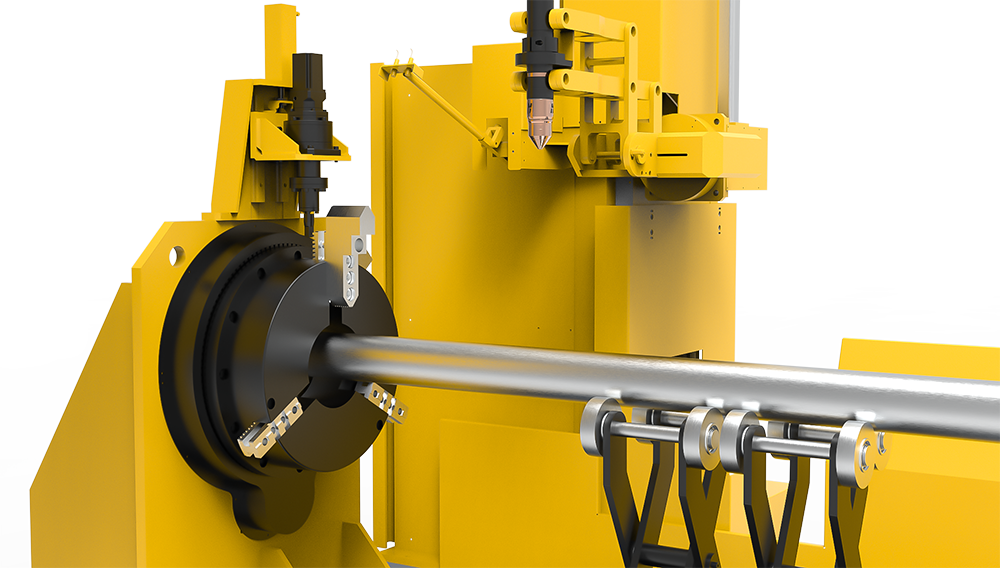

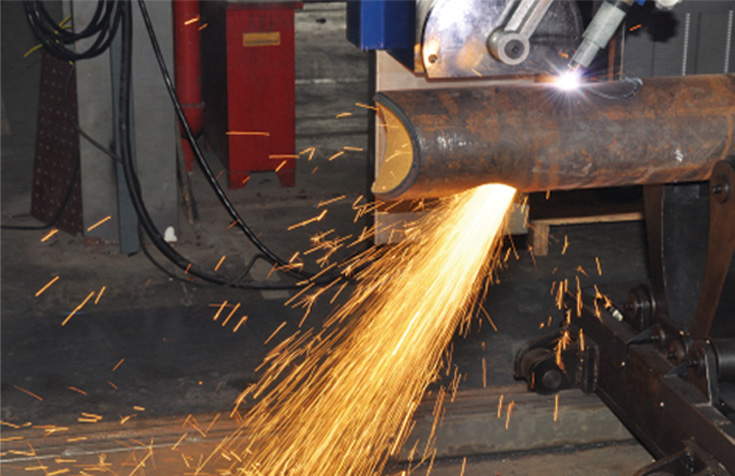

Multi-axis Pipe Cutting Machine
It’s a multi axis pipe intersecting line cutting machine with gas cutting and plasma cutting, which can be used in multiple ways.
Heat-treated Frame
Machine frame is processed by heat treatment to keep high accuracy all using life.

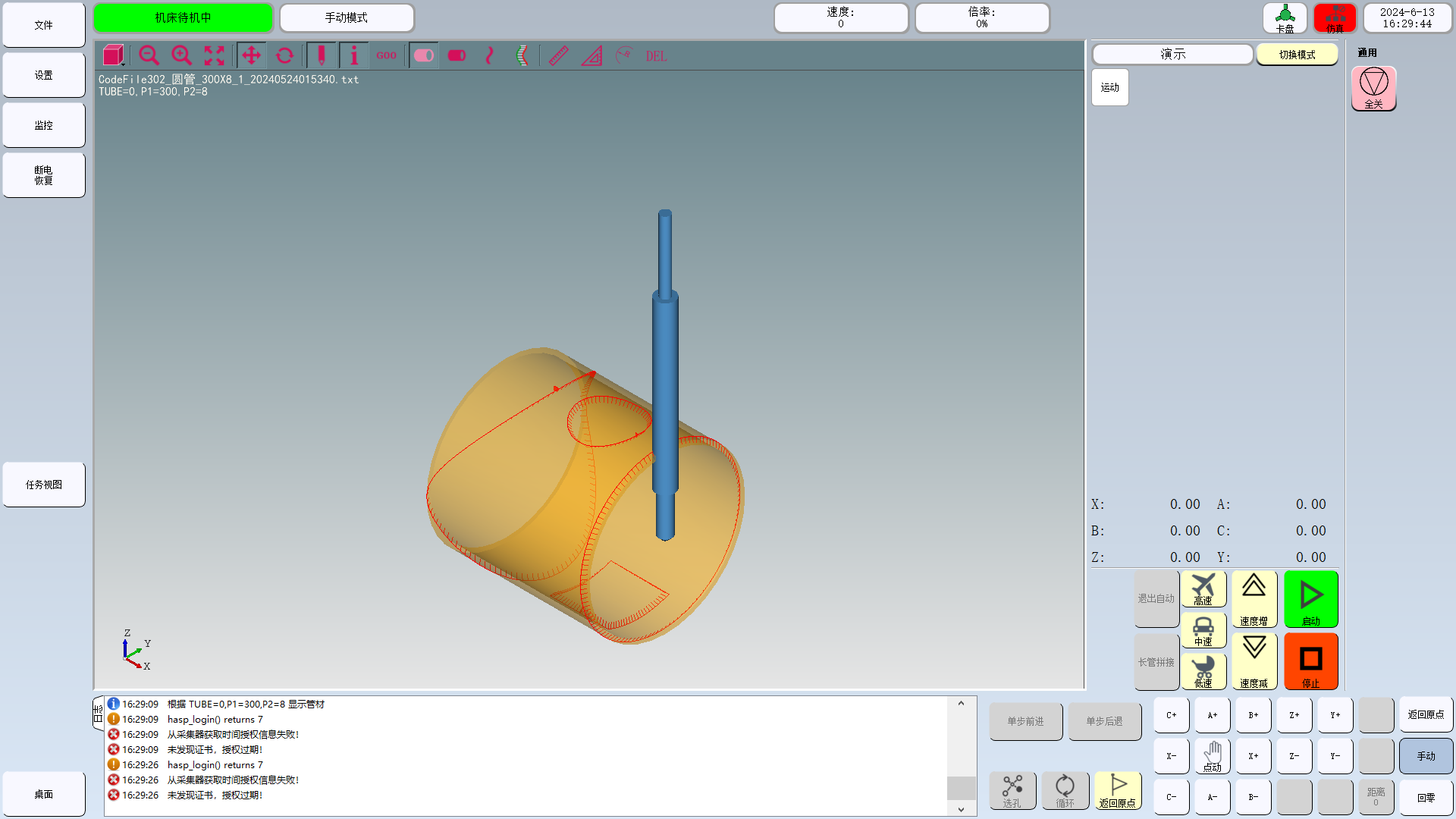

User-friendly Interface
It has the function of combining graphics and data, achieving human-machine dialogue, simple operation, and can be continuously processed for a long time, with stable operation.
​Automatic Hole & Groove Cutting
After nesting, Machine can automatically cut the intersecting line related holes and welding grooves of the pipes.

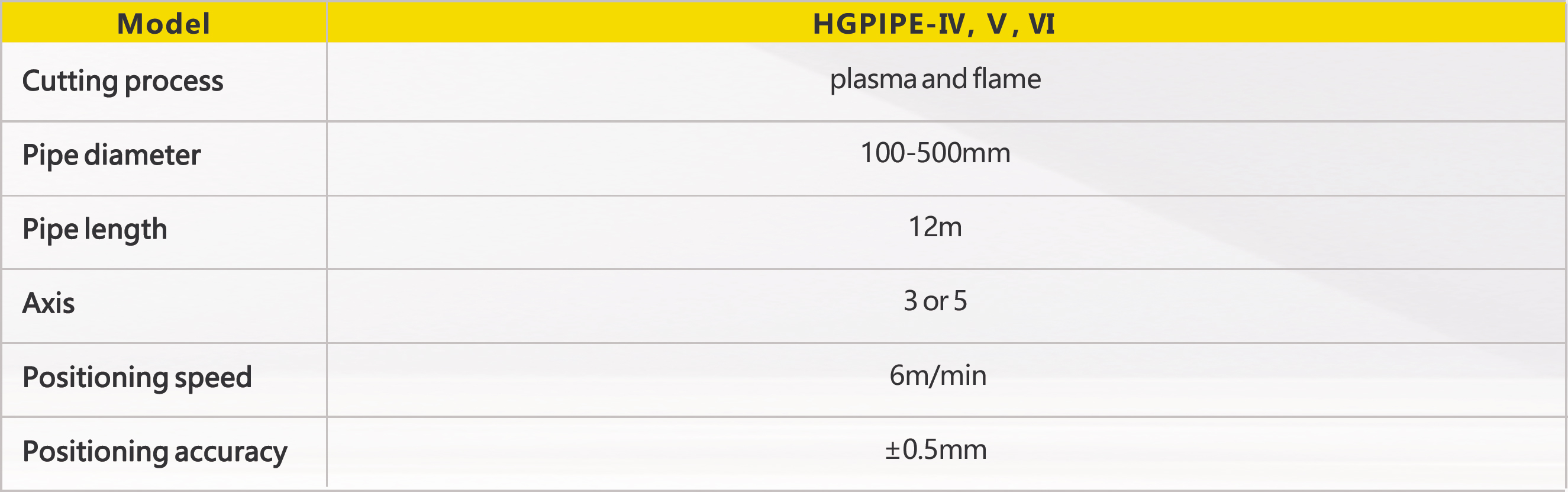

| Model | HGPIPE-IV, V, VI |
|---|---|
| Cutting process | plasma and flame |
| Pipe diameter | 100-500mm |
| Pipe length | 12m |
| Axis | 3 or 5 |
| Positioning speed | 6m/min |
| Positioning accuracy | +0.5mm |
