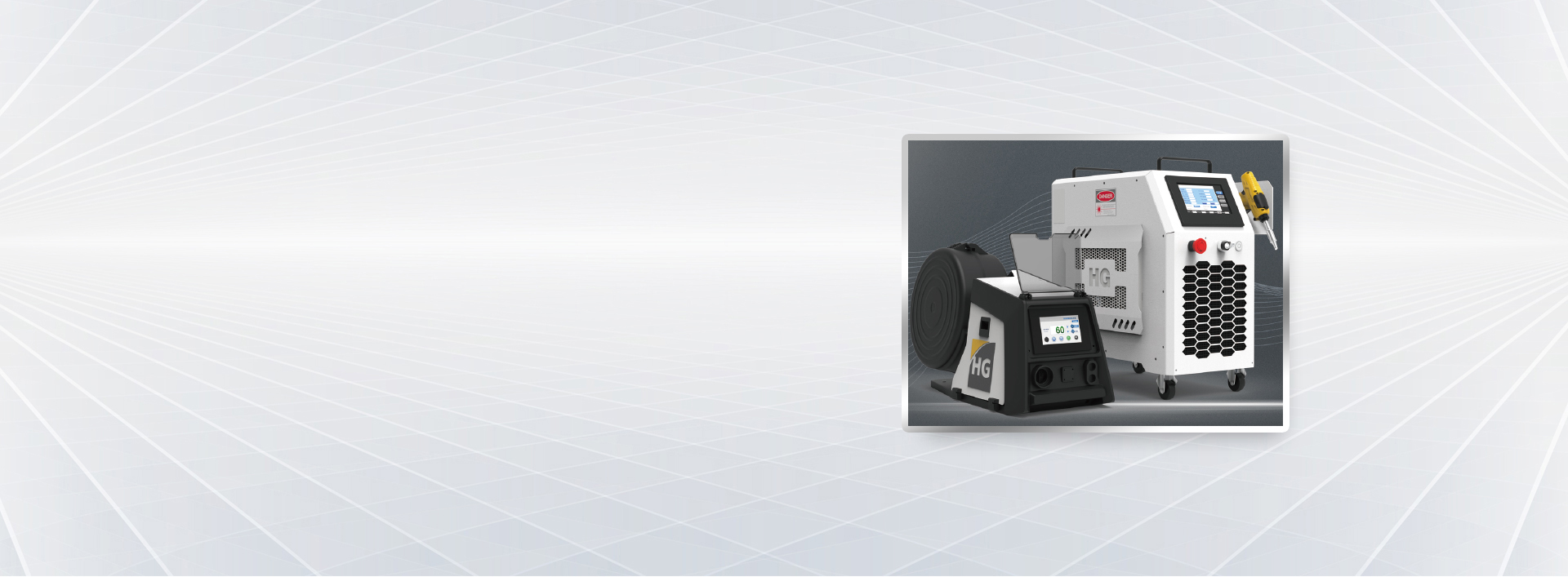

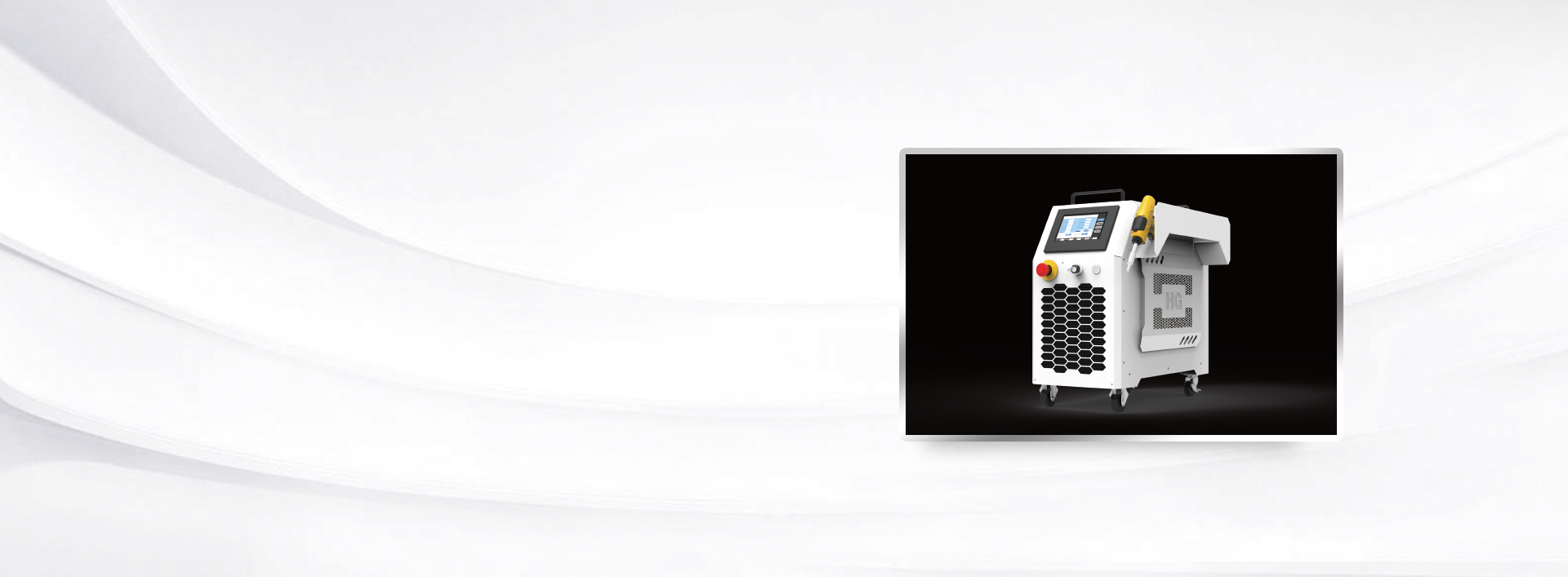

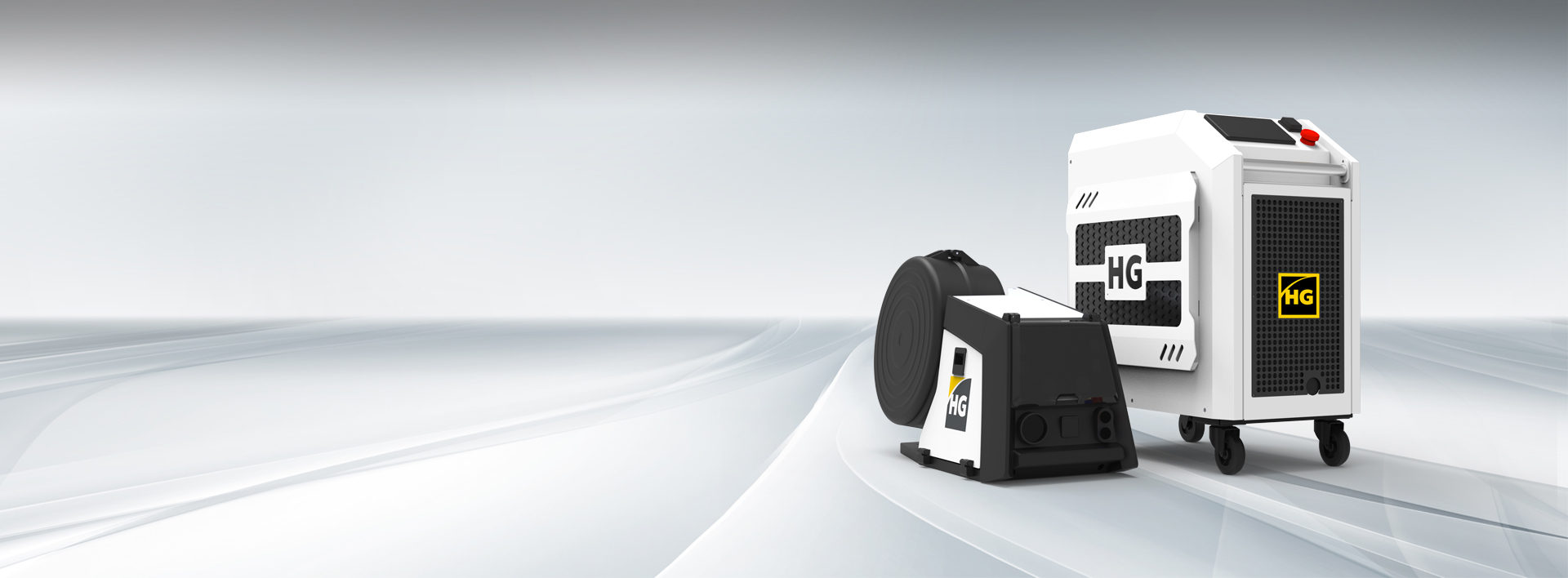

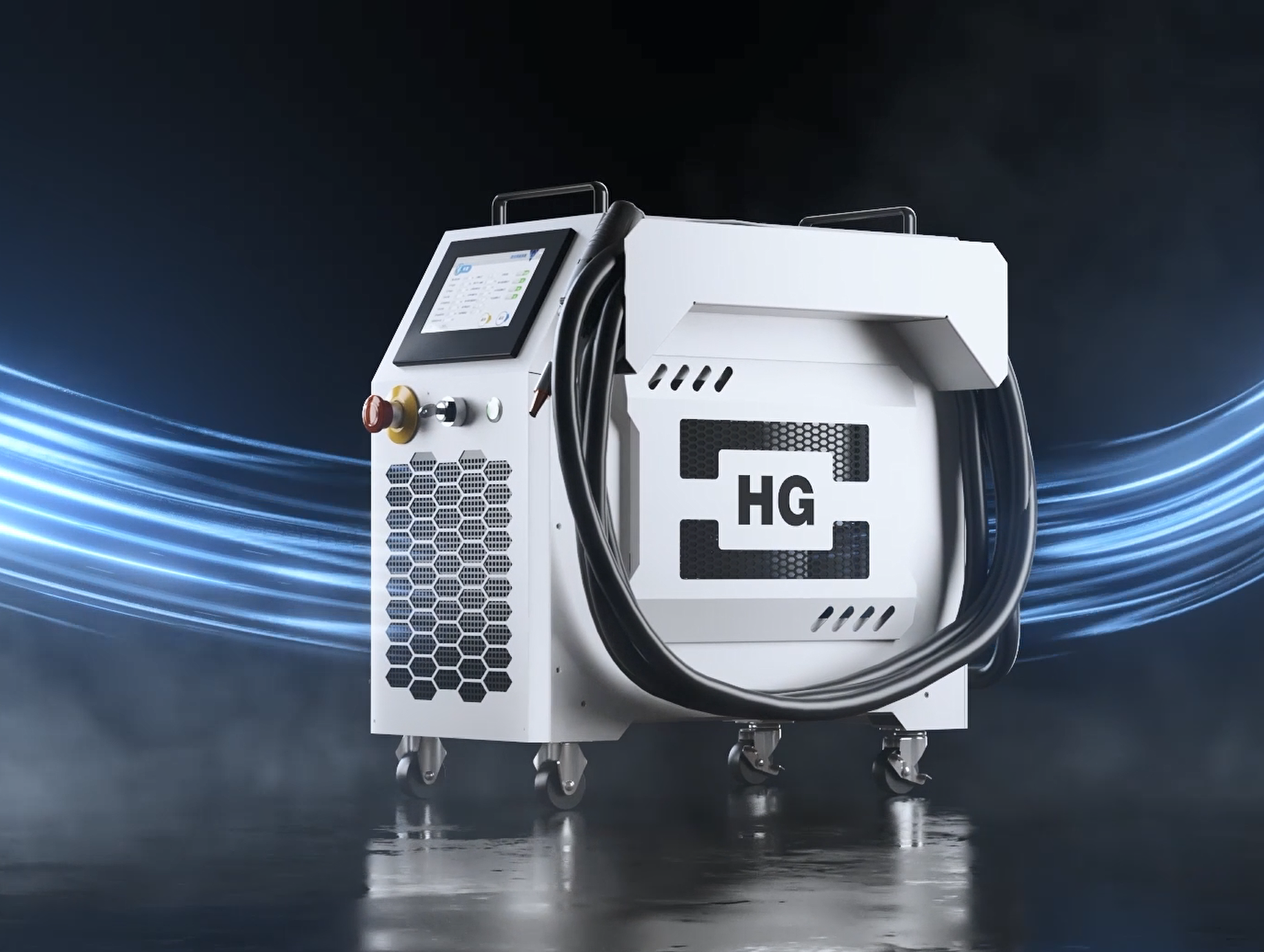

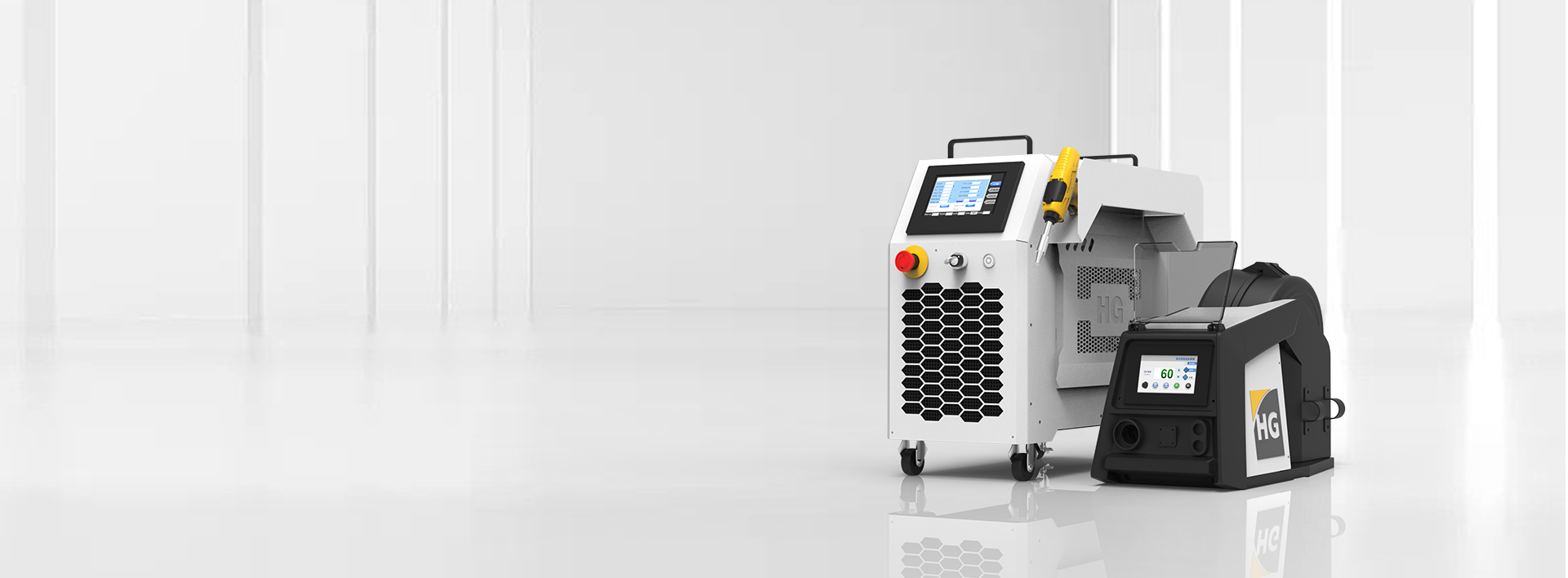

COMPACT DESIGN, PORTABLE AND FLEXIBLE
42kg ! new designed machine.
680g ! new designed torch.
4 wheels and handlebar, convenient to move.
680g ! new designed torch.
4 wheels and handlebar, convenient to move.

STRAIGHTFORWARD TO OPERATE

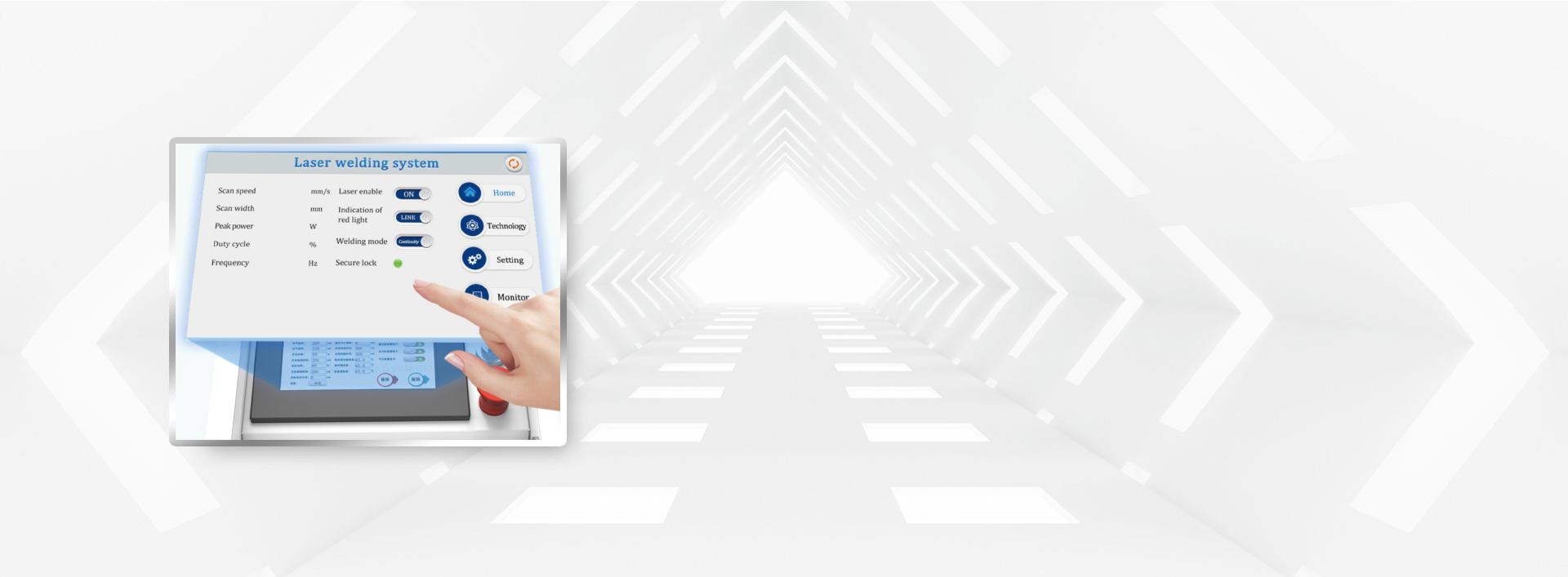

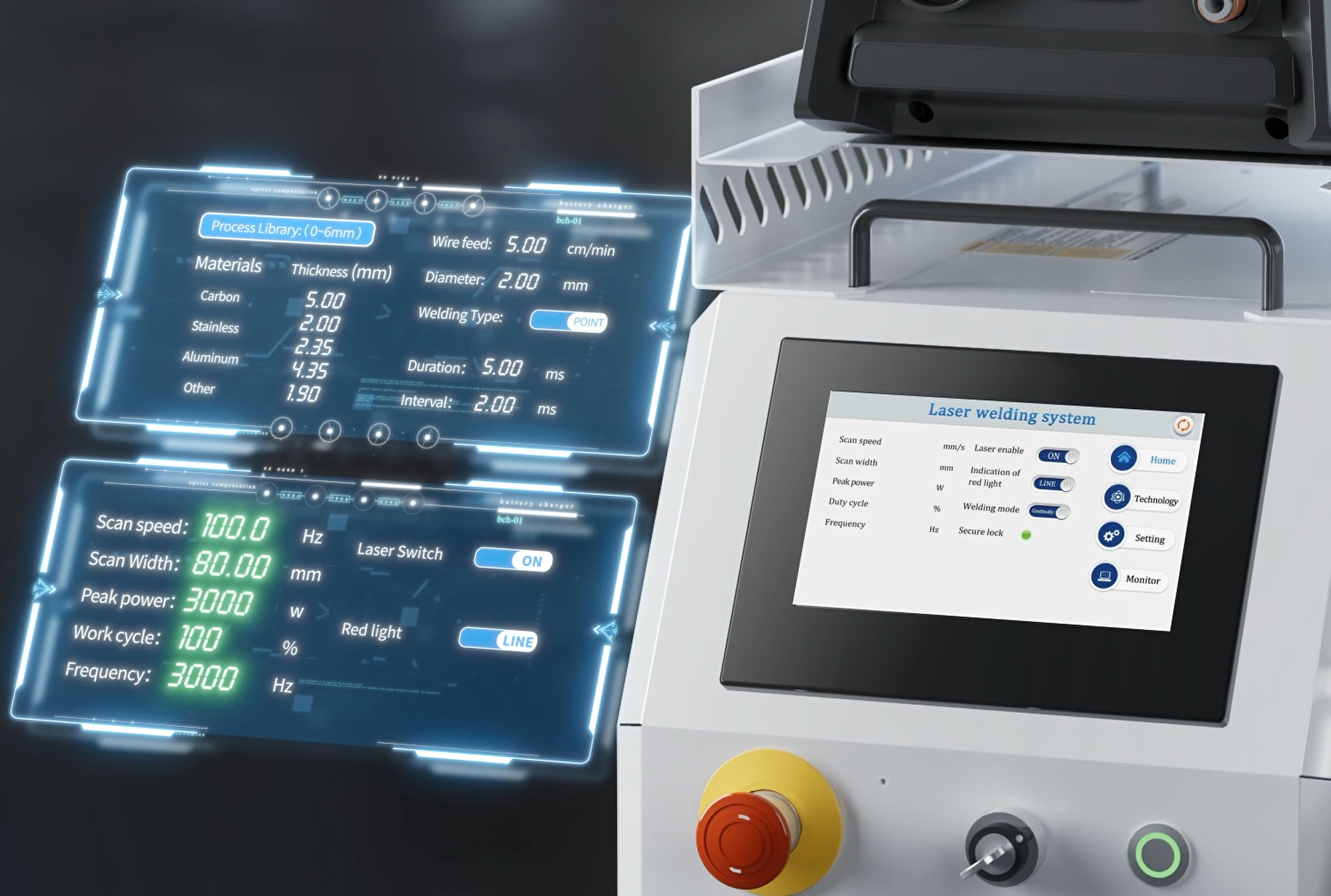

User-friendly UI, support 31 languages and 10 tech parameter memories.
7" Touch Screen(available with groove) on both center unit and wire feeder.
3 in 1 integrated functions (welding, cutting& cleaning).
7" Touch Screen(available with groove) on both center unit and wire feeder.
3 in 1 integrated functions (welding, cutting& cleaning).

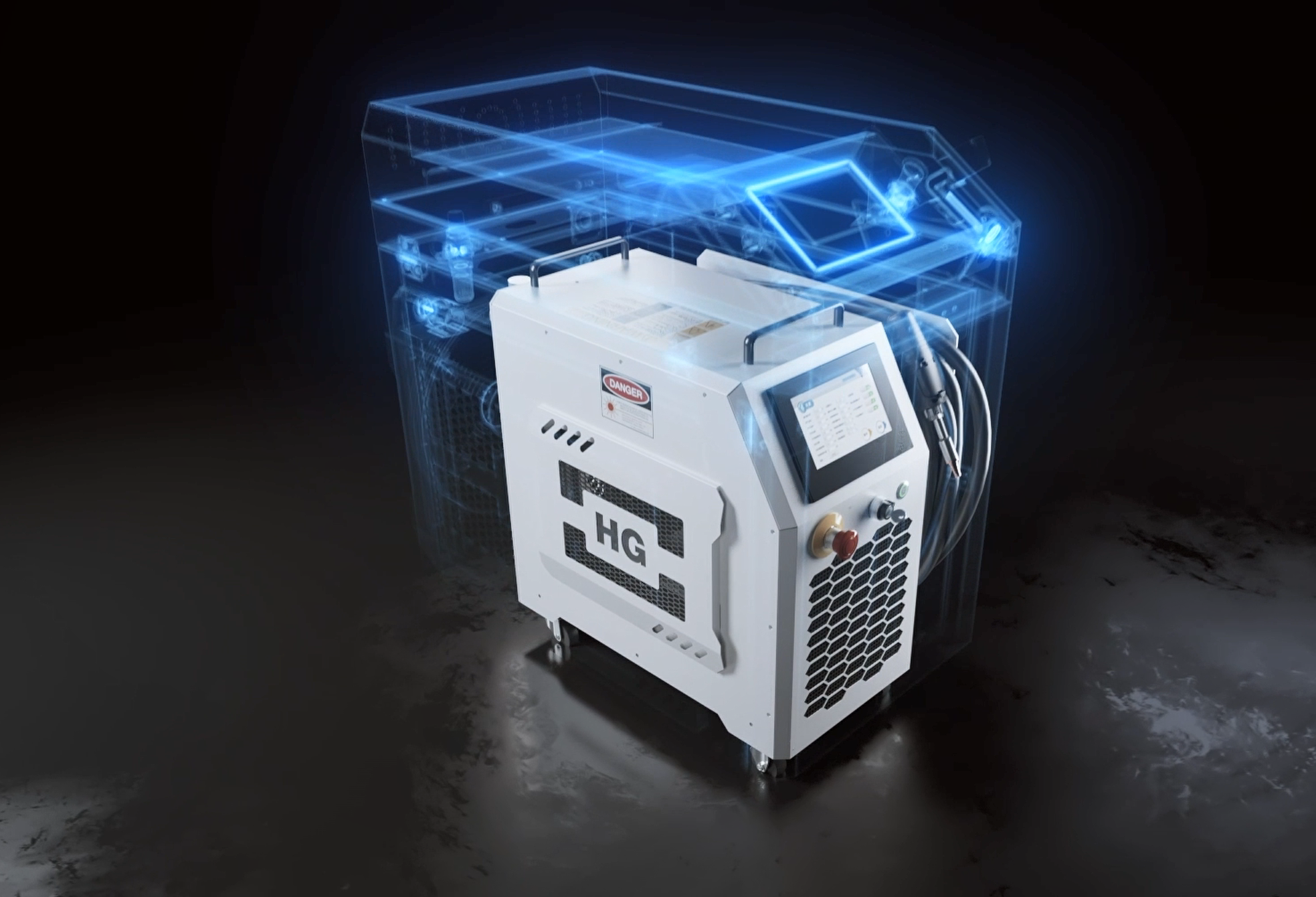

ROBUST AND SAFETY
80% covered with high strength steel.
3 protection insurances: Built-in air pressure valve, Laser safety interlock, work piece grounding.
100% duty circle due to high-power fan and full-sided cooling duct.
3 protection insurances: Built-in air pressure valve, Laser safety interlock, work piece grounding.
100% duty circle due to high-power fan and full-sided cooling duct.

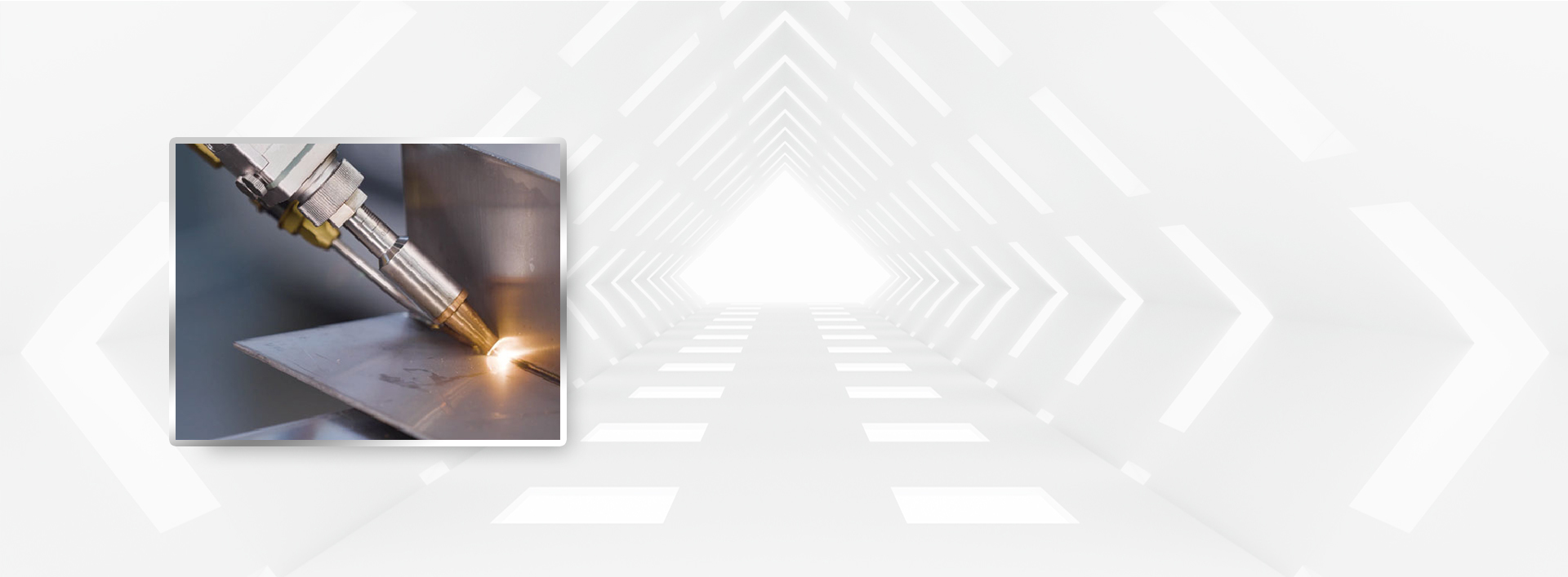

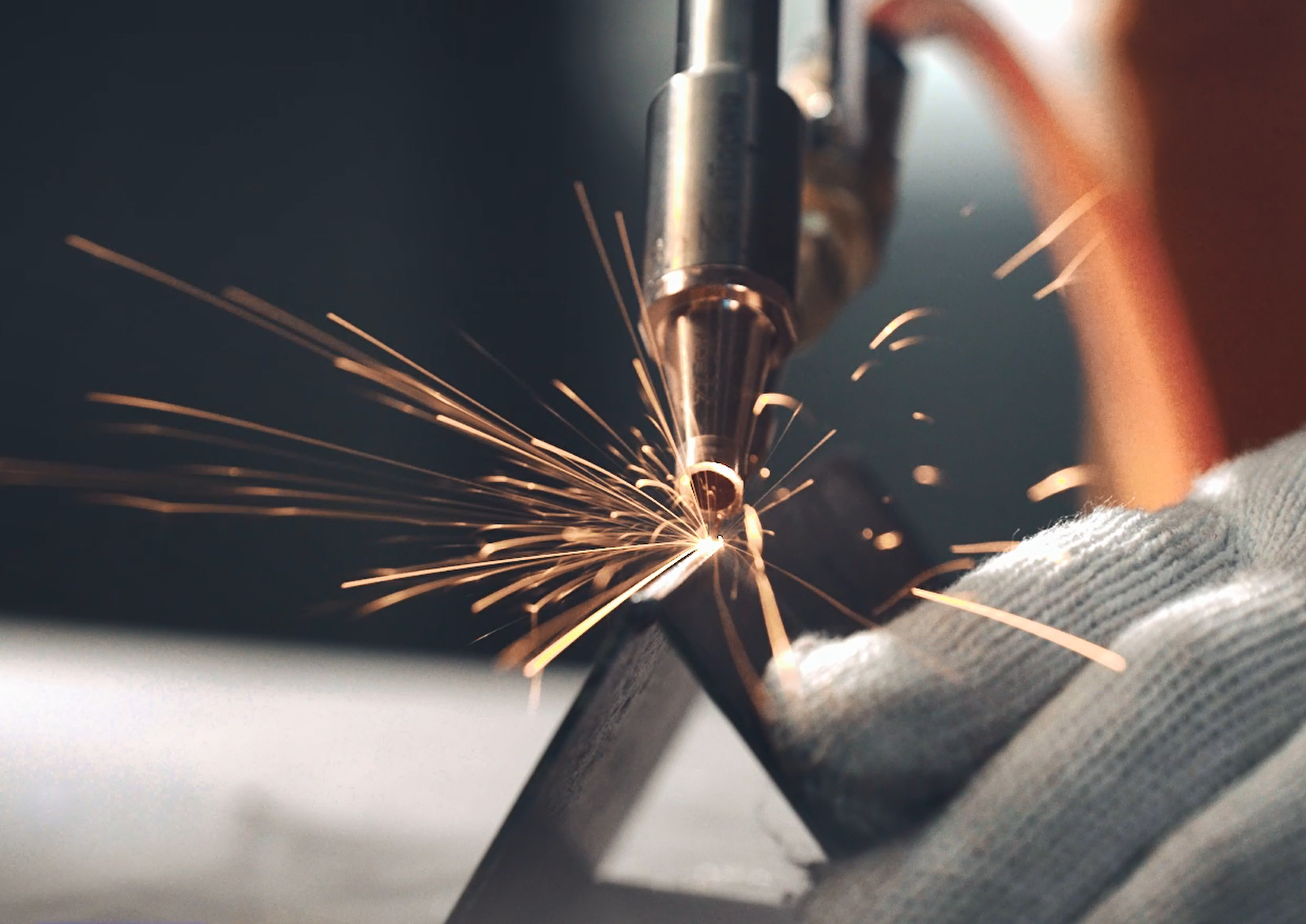

REVOLUTION OF WELDING
Elevate your welding experience with the HGLW-Air series welders-a fusion of safety, efficiency, and environmental consciousness-would dramatic elevate your welding experience. Engineered with a cutting-edge high-precision LASER control system,these welders ensure stable beam quality and offer LASER powers ranging from 800 to 1,500 Watts, Whether you're a seasoned professional or a novice, achieving high-quality welds has never been easier or safer.

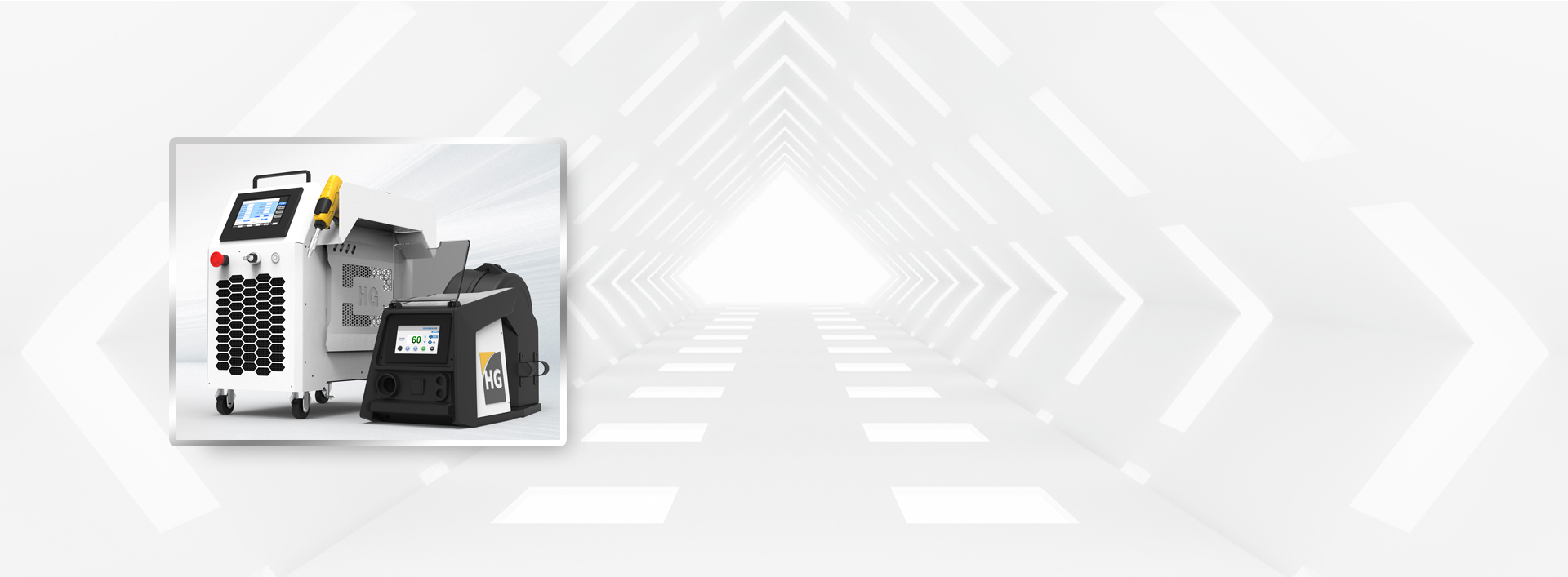

QUICK & EASY INSTALLATION & USAGE
It would be an enjoyable process to intall HUGONG" HGLW-Air serials laser welder, with the user
guide videos and clear instruction attached with the machine.

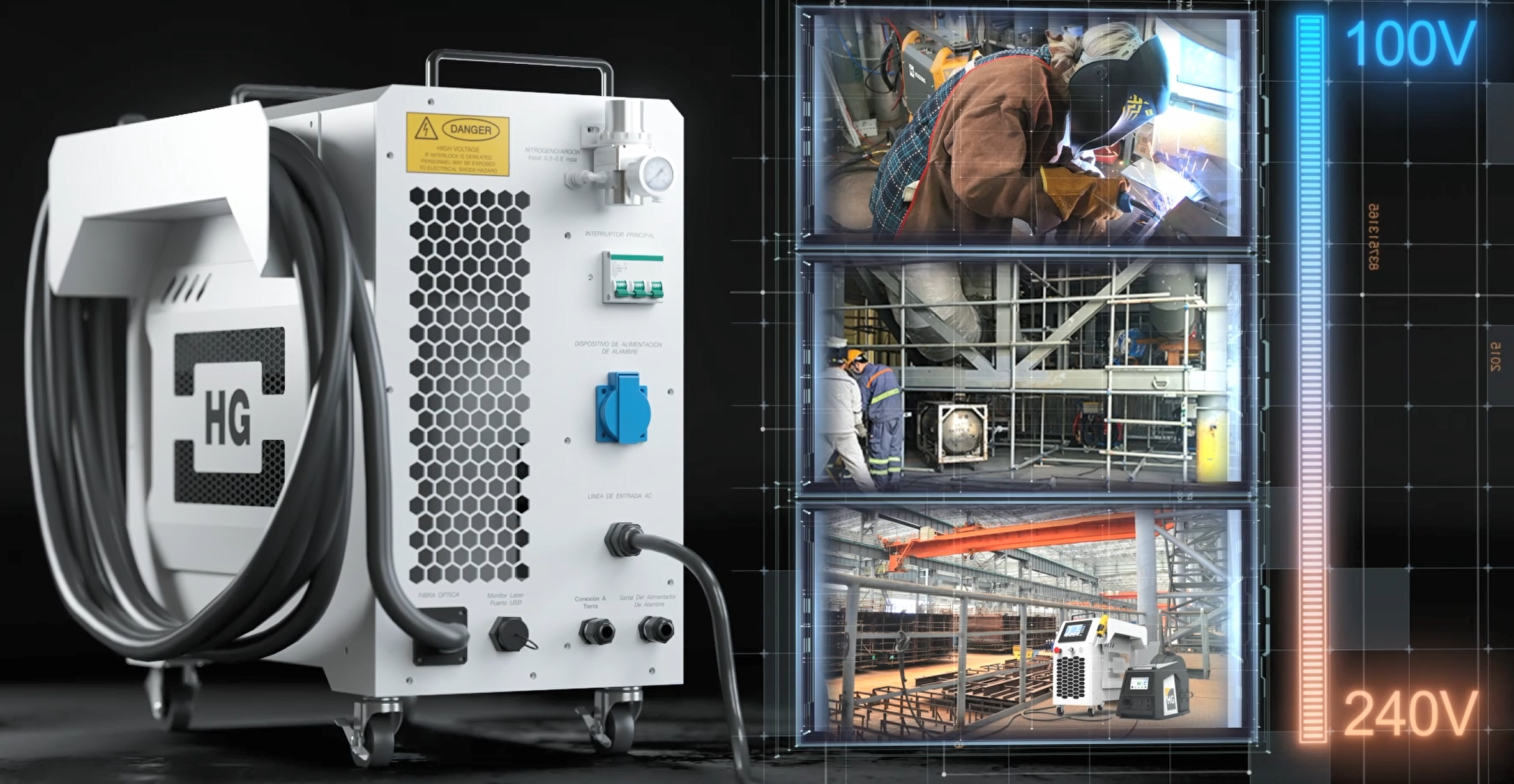

You just need: OConnect with standard 220V AC power (32A/40A)
Connect with shield gas source (i.e. Nitrogen or Argon)
Connect with welding wire feeder
Equipt safety wearing,
Grounding between the ground clamp and the workpeice when working!
guide videos and clear instruction attached with the machine.
You just need: OConnect with standard 220V AC power (32A/40A)
Connect with shield gas source (i.e. Nitrogen or Argon)
Connect with welding wire feeder
Equipt safety wearing,
Grounding between the ground clamp and the workpeice when working!

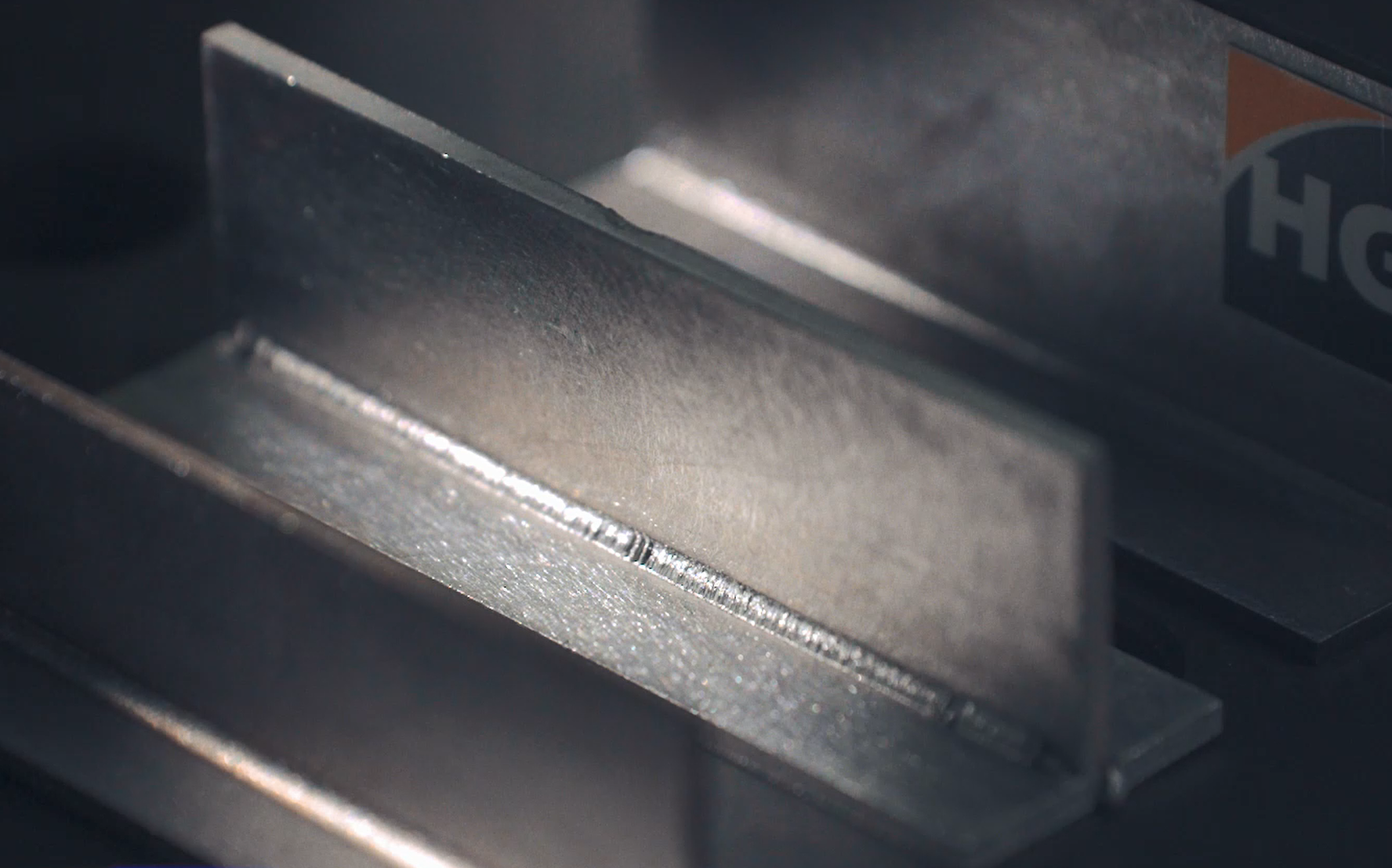

CLEAN & PRECISE

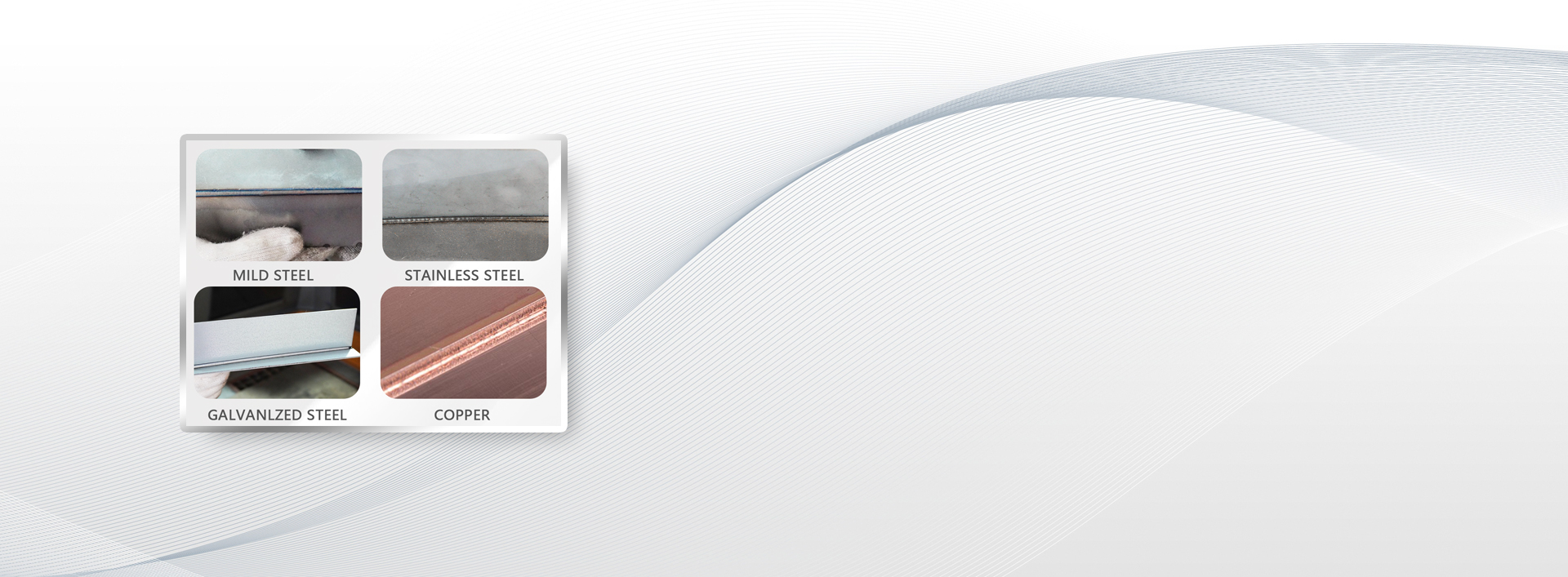

The handheld laser welder features a laserWelder features a LASER control system that controls wobble frequency, delivering smooth, symmetrical weld seams that don'trequire further processing. HGLW-Air also allows forautogenous welding, resulting in cleaner welds andlower material costs. Additionally, the welder's wire feeder module enablesdeeper weld penetration-supporting 0.8mm, 1.0 mm ,1.2 mm, and 1.6 mm welding wirediameters-and is compatible with a variety of materials.

INCLUDES
1 set HUGONG™ Air-Ccooled Central Unit
8m Cable HUGONG™ Laser Welding Torch
3m Wire Feeding Hose
3m CAT 6 Ethernet Cable

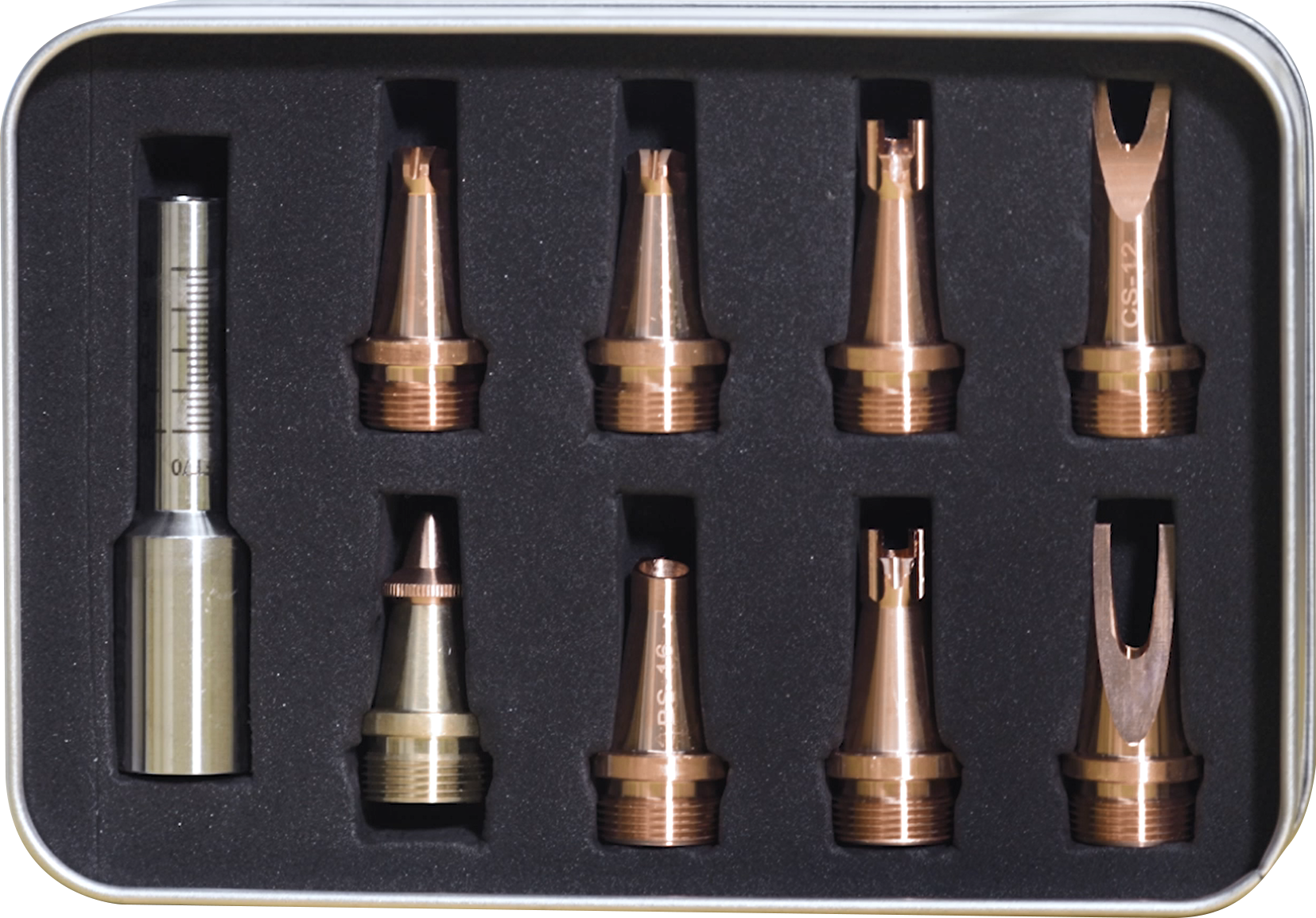

1 set Wire Feeding Nozzle Tips
1 set HUGONG™ wire feeder
5m HUGONG™ Workpiece Clamp
1 pair Laser Welding Goggle OD 5+
1 set Welding Nozzle
5 Pieces Protective Lens
8m Cable HUGONG™ Laser Welding Torch
3m Wire Feeding Hose
3m CAT 6 Ethernet Cable
1 set Wire Feeding Nozzle Tips
1 set HUGONG™ wire feeder
5m HUGONG™ Workpiece Clamp
1 pair Laser Welding Goggle OD 5+
1 set Welding Nozzle
5 Pieces Protective Lens

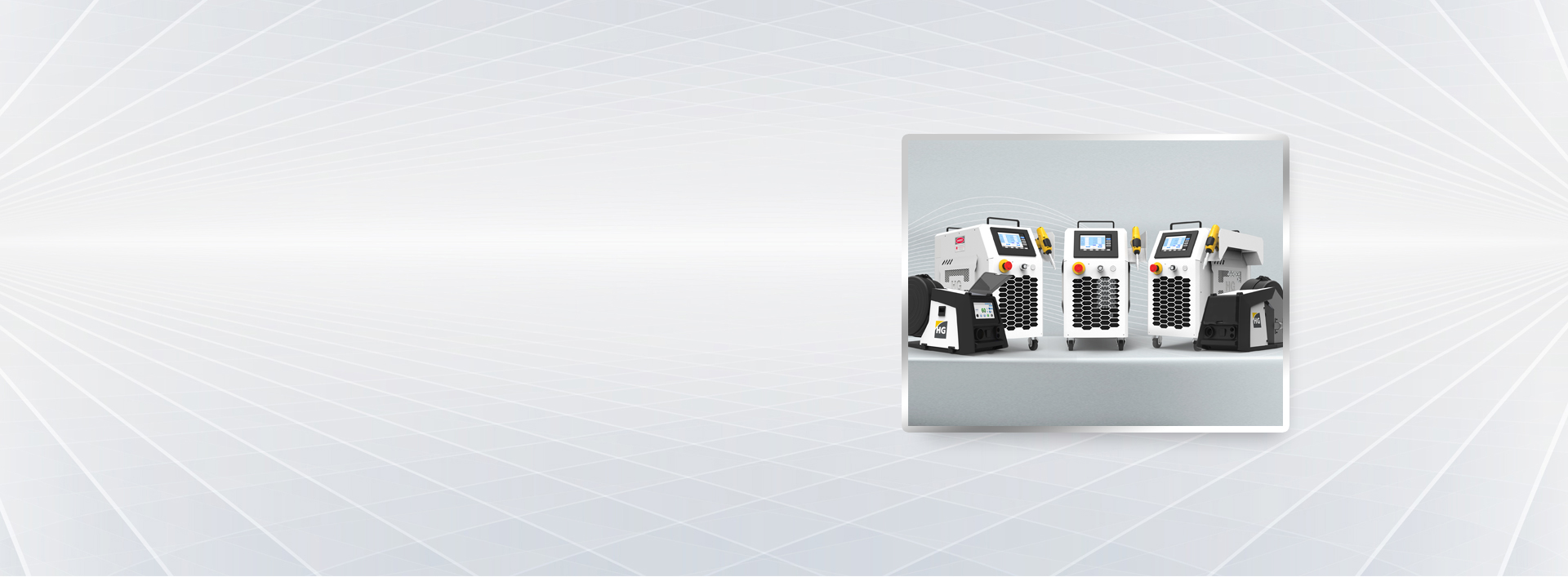

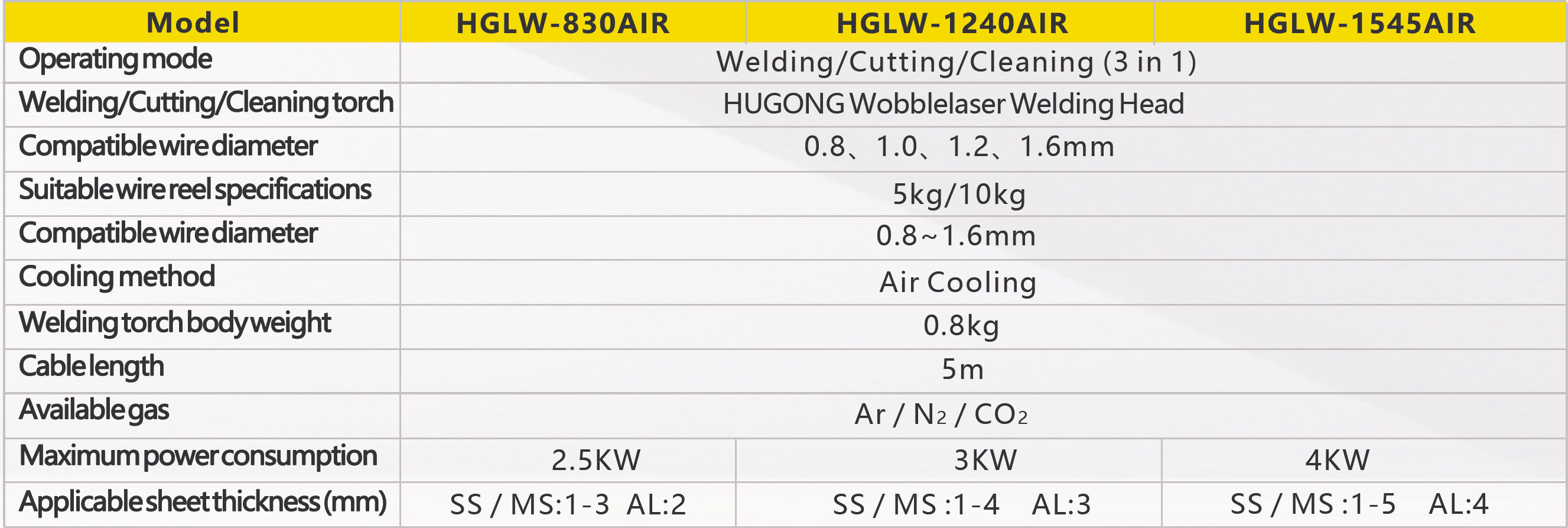

| Model | HGLW-830AIR | HGLW-1240AIR | HGLW-1545AIR |
|---|---|---|---|
| Operating mode | Welding/Cutting/Cleaning (3 in 1) | ||
| Welding/Cutting/Cleaning torch | HUGONG Wobblelaser Welding Head | ||
| Compatible wire diameter | 0.8,1.0,1.2、1.6mm | ||
| Suitable wire reel specifications | 5kg/10kg | ||
| Compatible wire diameter | 0.8~1.6mm | ||
| Cooling method | Air Cooling | ||
| Welding torch body weight | 0.8kg | ||
| Cable length | 5m | ||
| Available gas | Ar/N₂/CO₂ | ||
| Maximum power consumption | 2.5KW | 3KW | 4KW |
| Applicable sheet thickness (mm) | SS/MS:1-3 AL:2 | SS/MS:1-4 AL:3 | SS/MS:1-5 AL:4 |
