HGR-H series

H-Type Efficiency

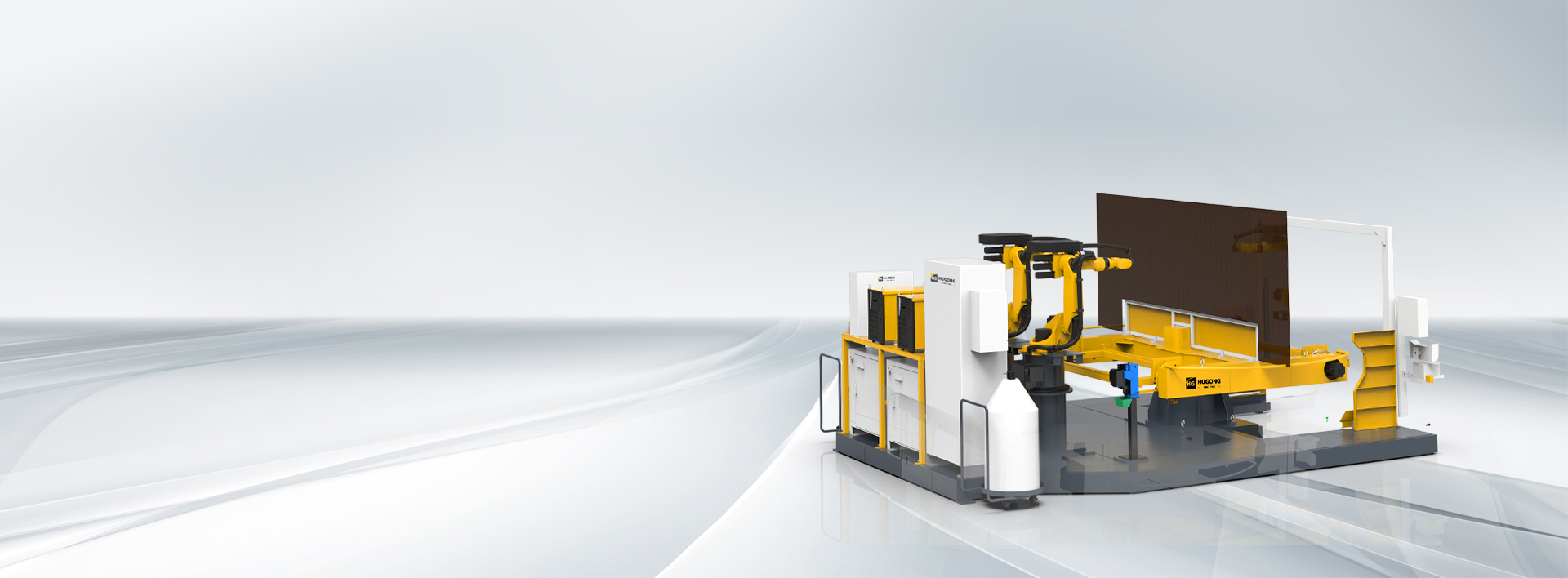

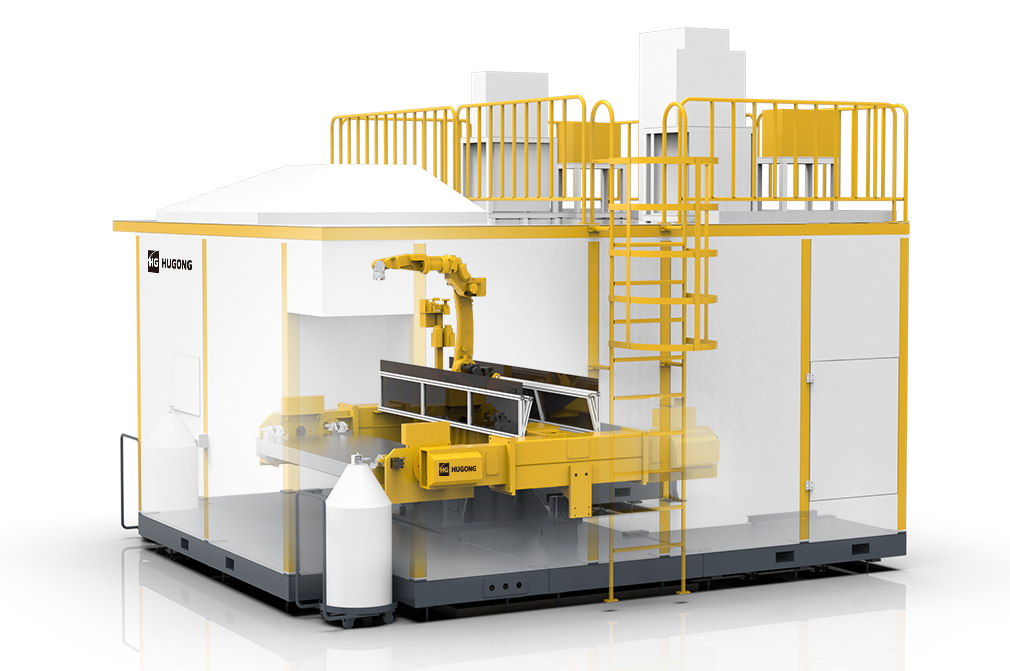

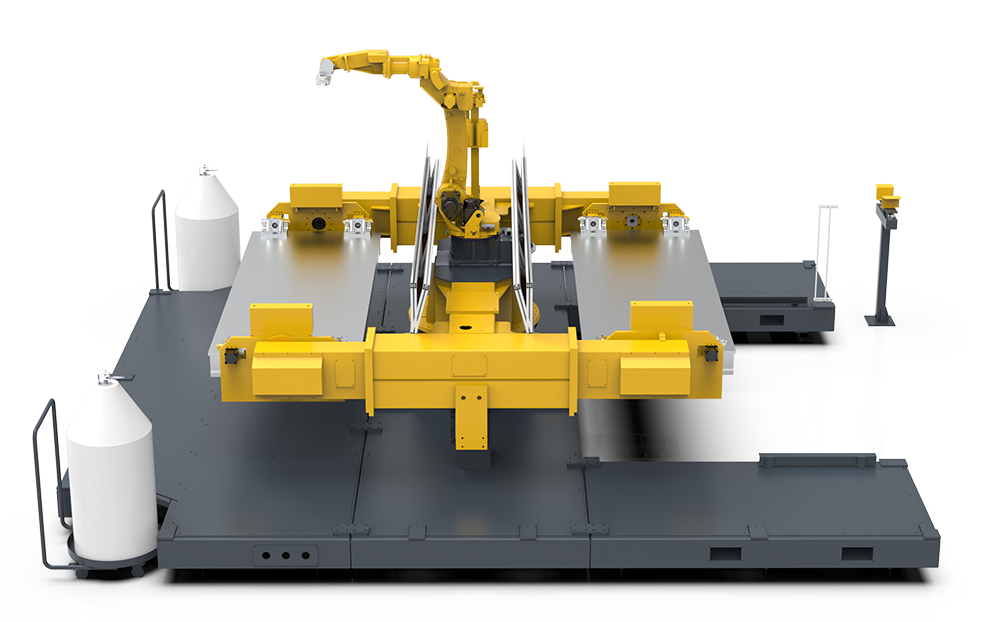

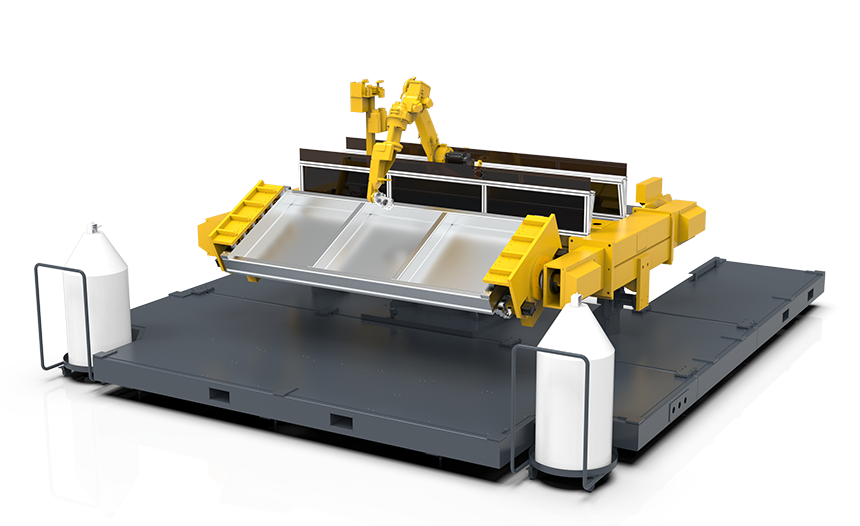

H-type workstation adopts H-type three-axis slewing transformer arrangement, through the slewing of the three-axis transformer, to realize the robot (welding) and the operator (loading and unloading) between the alternating work. This way can avoid or reduce the robot waiting time, improve productivity, reduce manual non-essential walking and reduce the work intensity of workers.

360° Welding Coverage

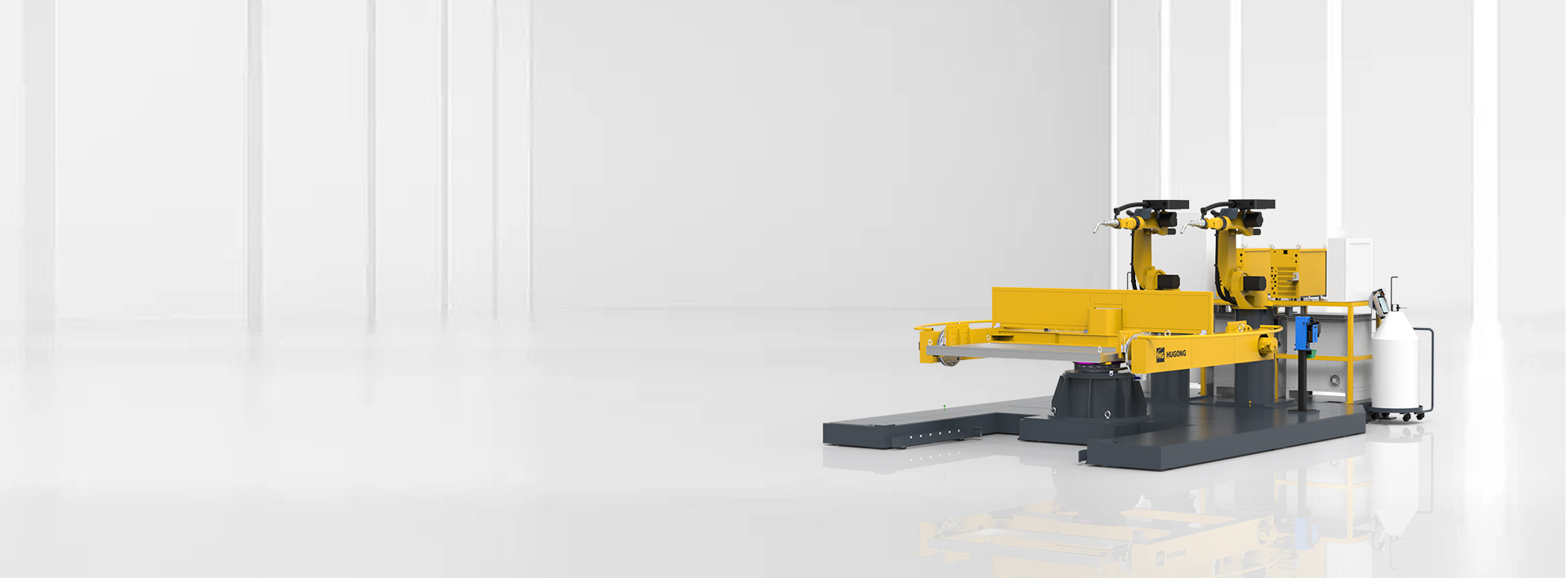

The workstation is configured with external axis vertical turnover indexer, which can coordinate the robot to complete the welding of weld in all angle directions.

Modular Scalability

Single-machine workstation is suitable for the production of products with length less than 1.8m and width less than 1.5m: double/triple-machine workstation is suitable for the production of products with length less than 4m and width less than 1.5m.

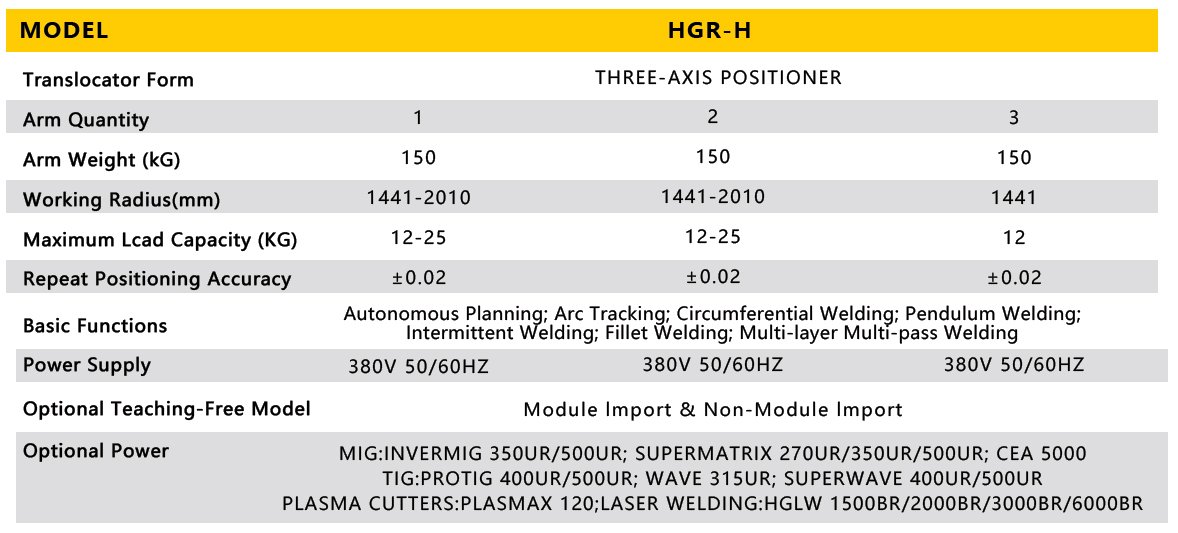

Model	HGR-H
Translocator Form	‌THREE-AXIS POSITIONER
Arm Quantity	1	2	3
Arm Weight (KG)	150	150	150
Working Radius(mm)	1441-2010	1441-2010	1441
Maximum Lcad Capacity (KG)	12-25	12-25	12
Repeat Positioning Accuracy	±0.02	±0.02	±0.02
Basic Functions	Autonomous Planning; Arc Tracking; Circumferential Welding; Pendulum Welding;Intermittent Welding; Fillet Welding; Multi-layer Multi-pass Welding
Power Supply	380V 50/60HZ	380V 50/60HZ	380V 50/60HZ
Optional Teaching-Free Model	Module Import & Non-Module Import
Optional Power	MIG:INVERMIG 350UR/500UR; SUPERMATRIX 270UR/350UR/500UR; CEA 5000TIG:PROTIG 400UR/500UR; WAVE 315UR; SUPERWAVE 400UR/500URPLASMA CUTTERS:PLASMAX 120;LASER WELDING:HGLW 1500BR/2000BR/3000BR/6000BR
