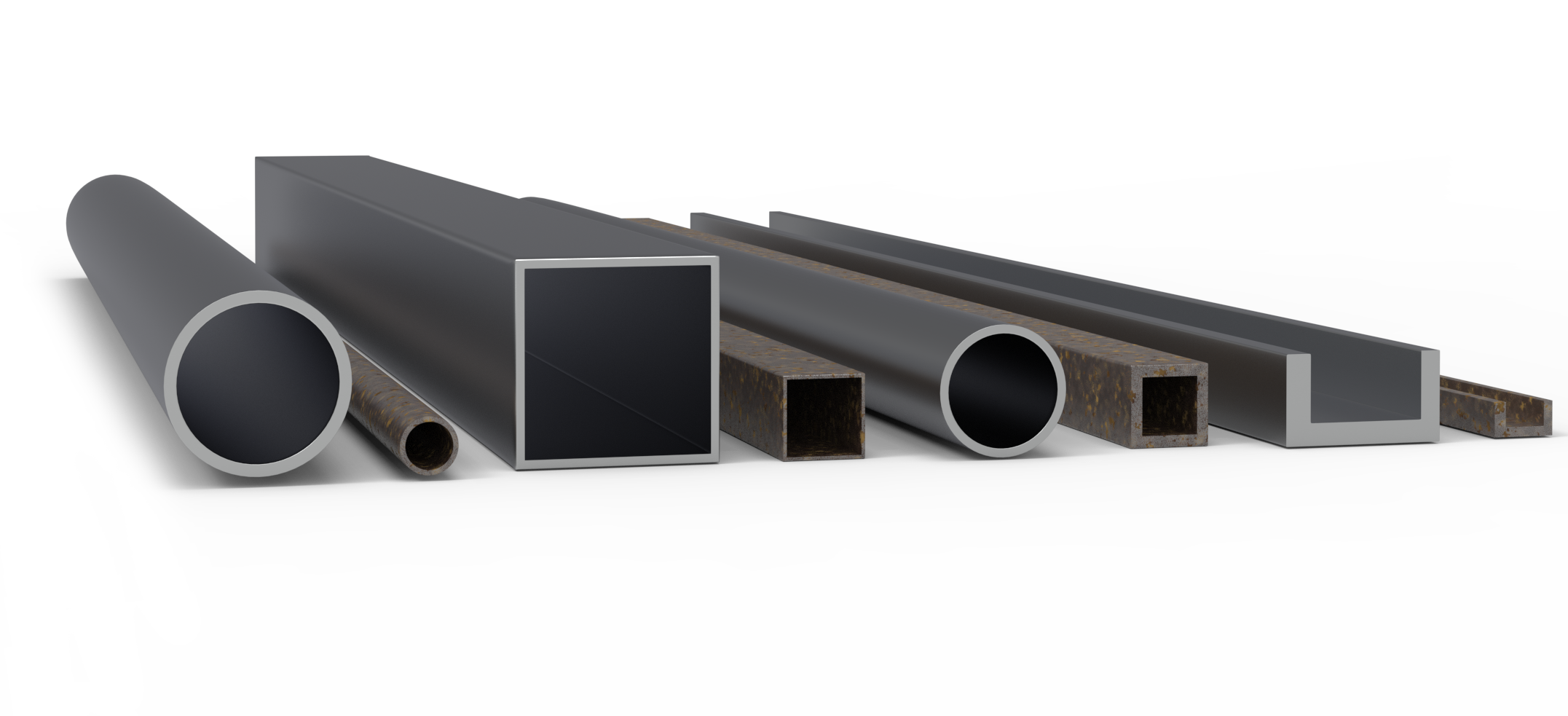

Cutting varieties of pipe
Rectangular pipe, square pipe, round pipe, oval pipe, angle steel, channel steel.
High-level safety
Fully shielded design, multiple safety circuit interlocking and cutting state induction to ensure the safety of personnel and equipment during processing.

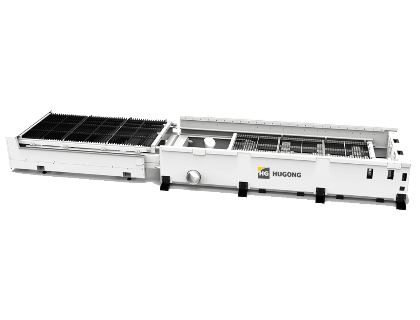

Exchange platform
The exchange time is very short and the operation is simple with horizontal exchange table.

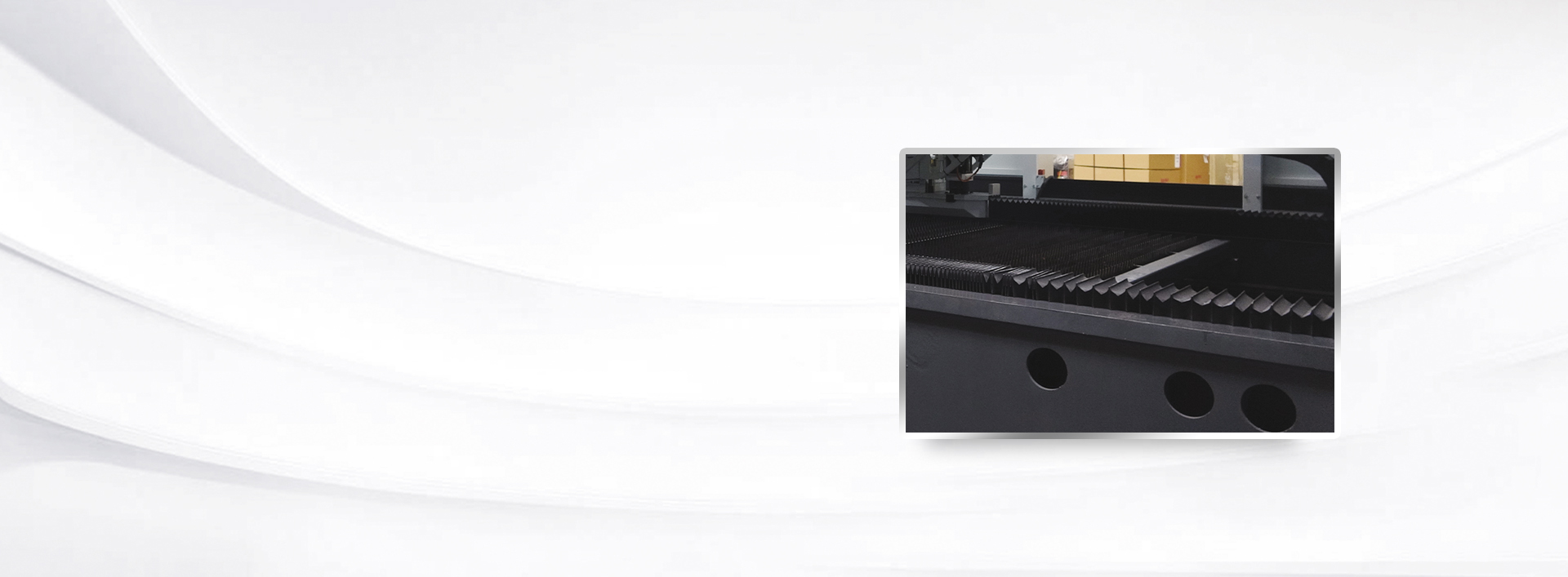

High precision retentivity
Finite element analysis optimizes the design of high strength aluminum alloy extrusion molding beams. table is welded by steel plate,annealing stress removal treatment ensures long-term stability of precision.

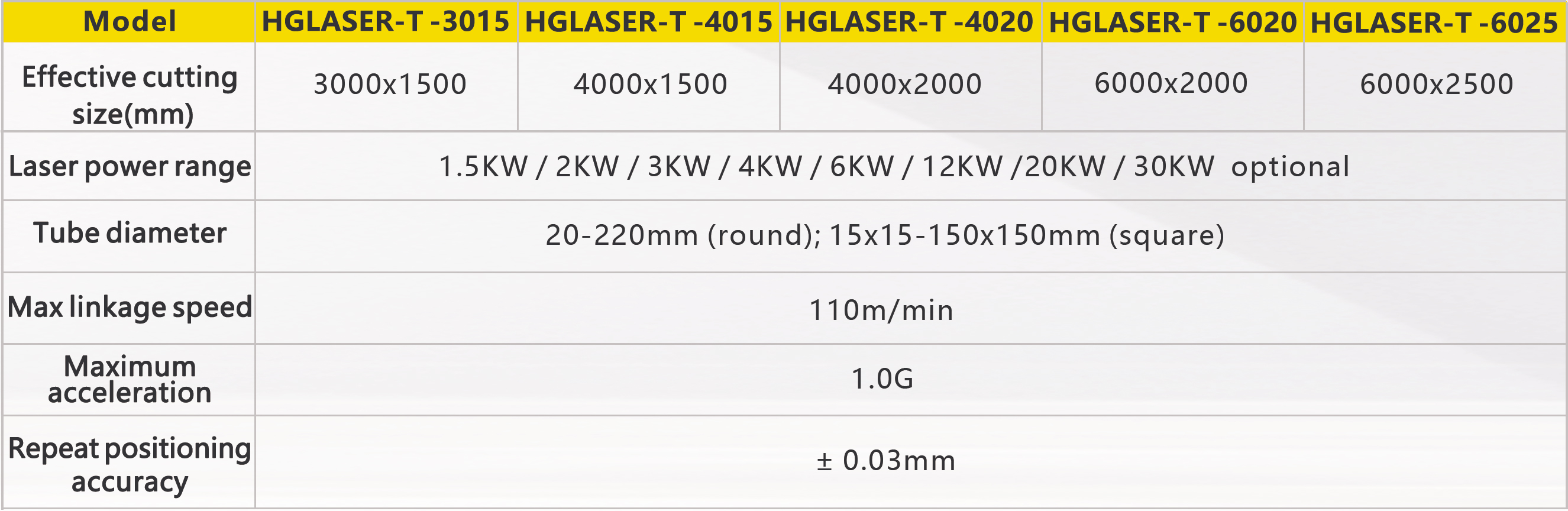

Model HGLASER-T-3015 HGLASER-T-4015 HGLASER-T-4020 HGLASER-T-6015 HGLASER-T-6020 HGLASER-T-6025
Effective cutting size (mm) 3000x1500 4000x1500 4000x2000 6000x1500 6000x2000 6000x2500
Laser Power range 1.5KW / 2KW / 3KW / 4KW / 6KW / 12KW / 20KW / 30KW optional
Tube diameter 20-220mm (round); 15x15-150x150mm (square)
Max linkage speed 110m/min
Maximum acceleration 1.5G
positioning Accuracy +0.03mm
