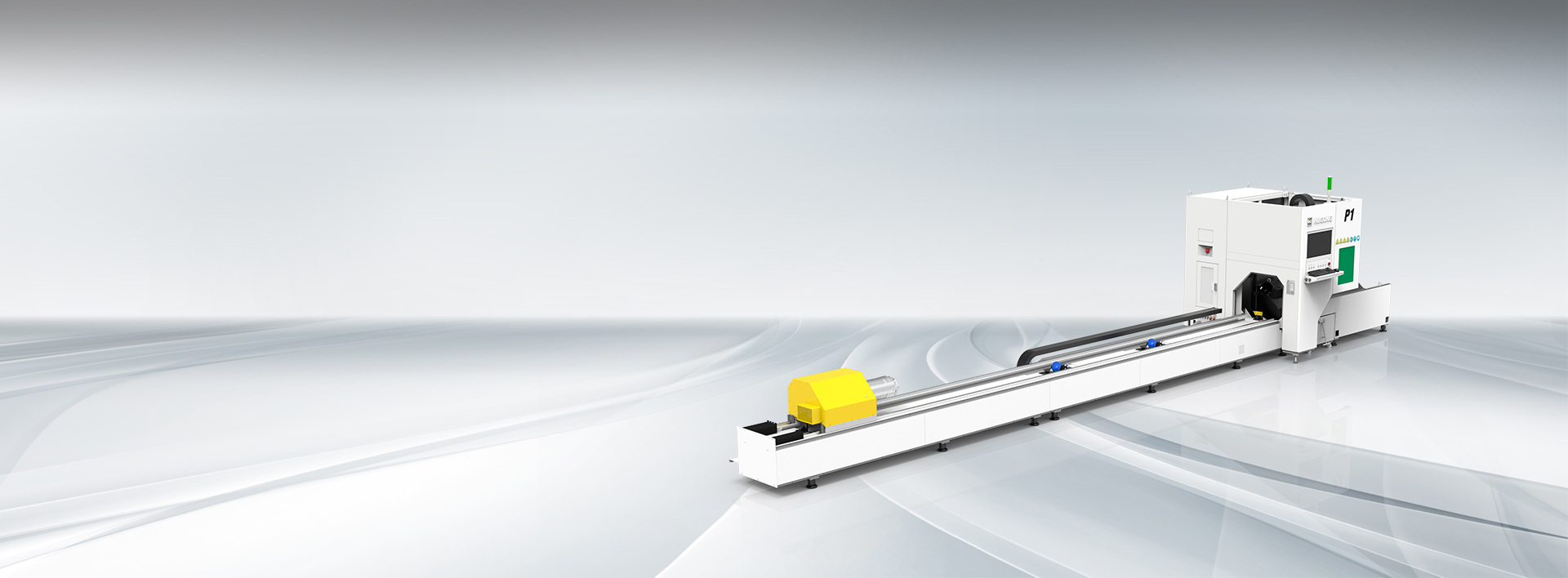

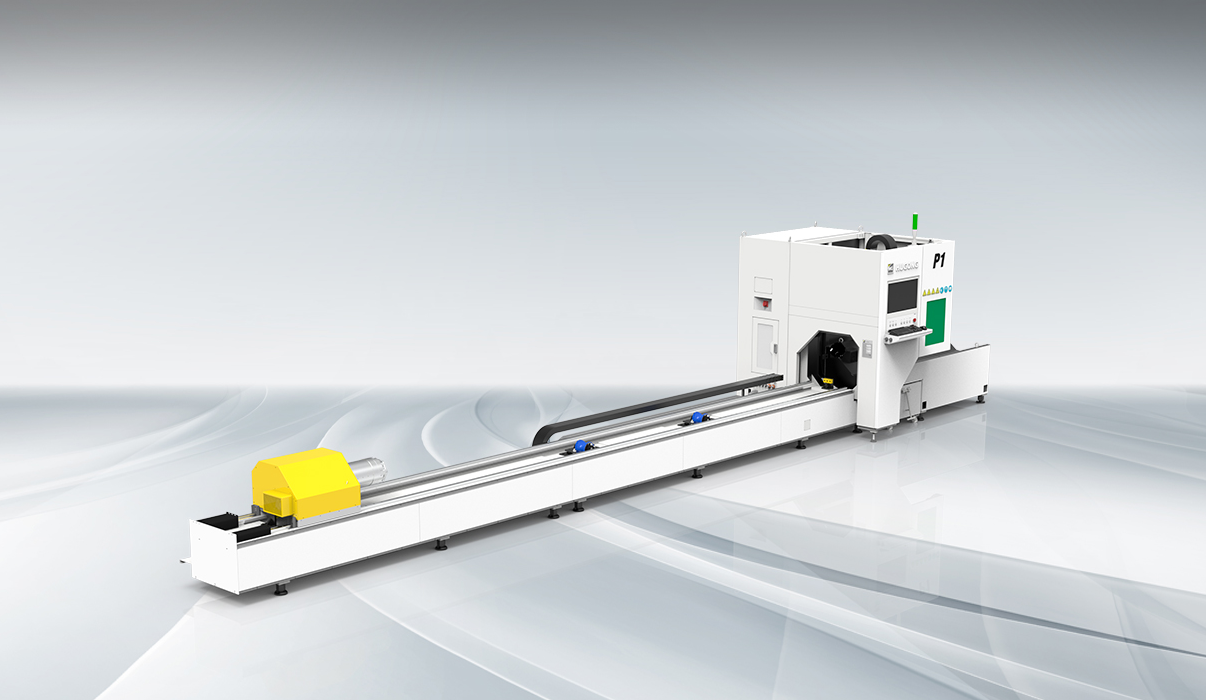

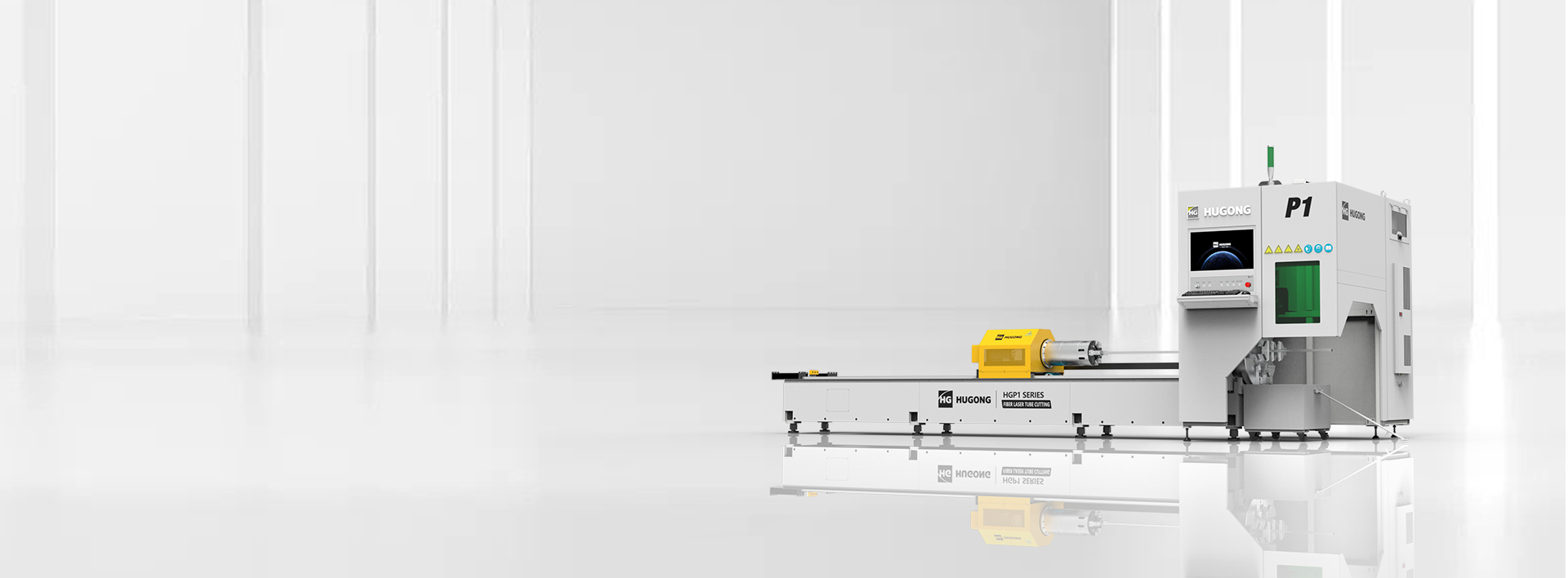

HGP1 SERIES

Long-Term Stability

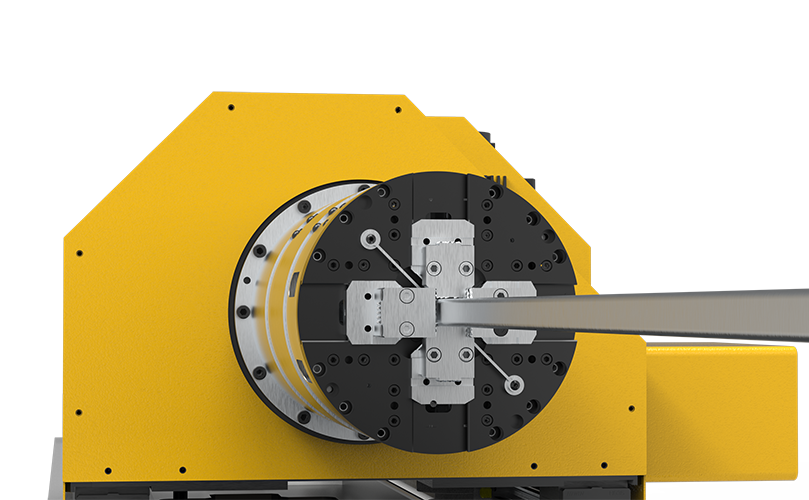

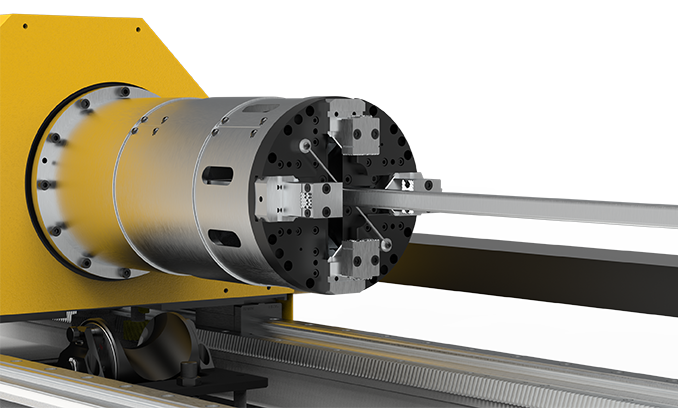

Integrated high-precision pneumatic chuck.The gear ring is sealed in the chuck base processed by precision CNC, with long-lasting and stable accuracy and high repeatability

Fast Response

The rotating part is a high-strength aluminum base with small Moment of inertia and high response speed.

Full-Stroke Chuck

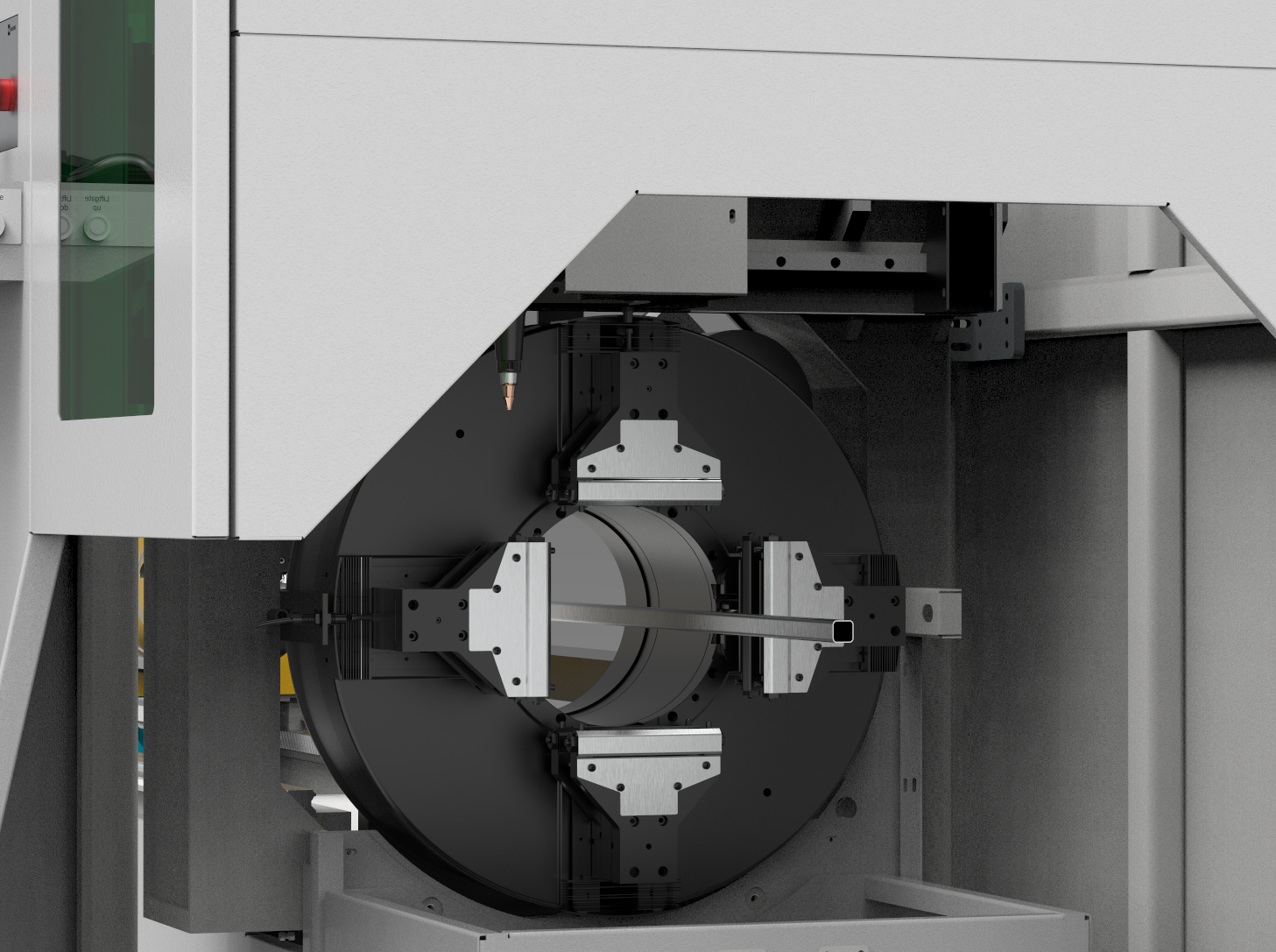

The front chuck has a full stroke design, no need to reinstall the claw when switching between different pipe diameters.

Vibration Control

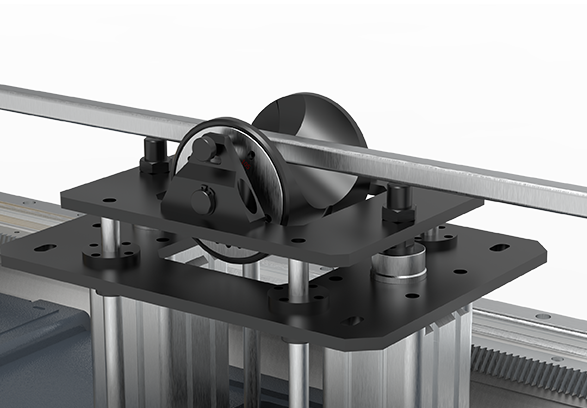

Standard pneumatic pipe support device: It is convenient to load raw materials, restrain high-speed cutting jitter of thin pipes, and improve cutting accuracy and section quality.

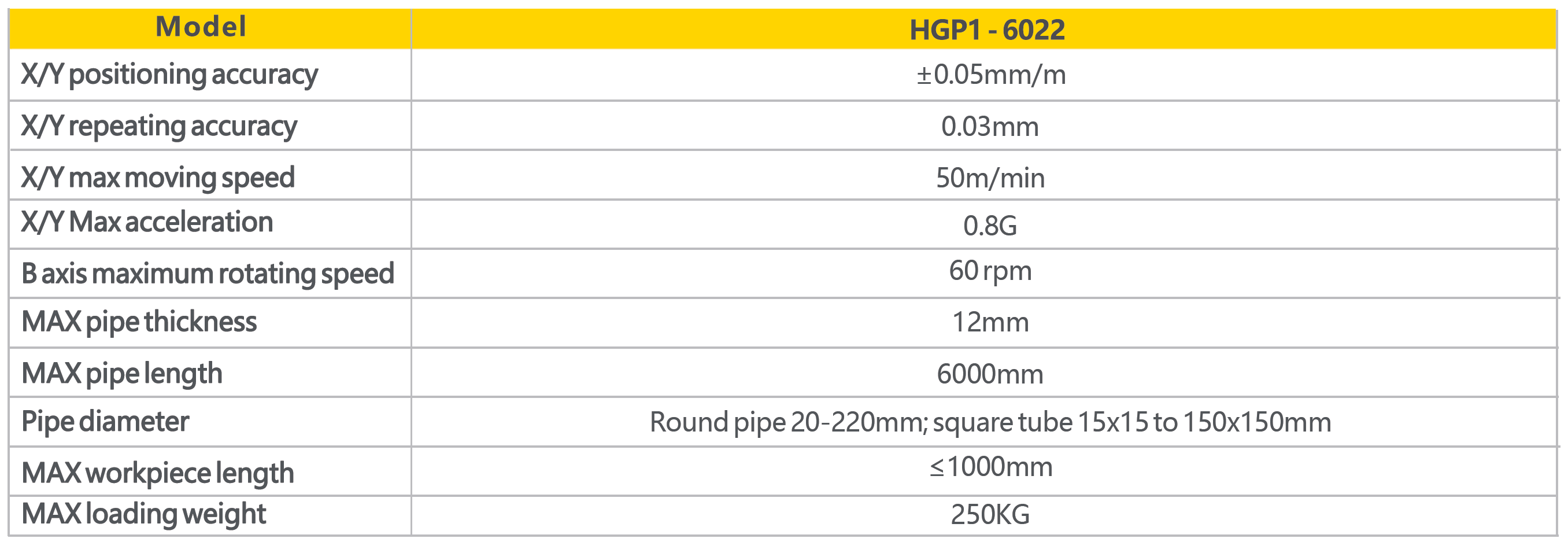

Model	HGP1
XY positioning accuracy	+0.05mm/m
XY repeating accuracy	0.03mm
XY max moving speed	50m/min
XY Max acceleration	0.8G
B axis maximum rotating speed	60 rpm
MAX pipe thickness	12mm
MAX pipe length	6000mm
Pipe diameter	Round pipe 20-220mm; square tube 15x15 to 150x150mm
MAX workpiece length	≤1000mm
MAX loading weight	250kg
