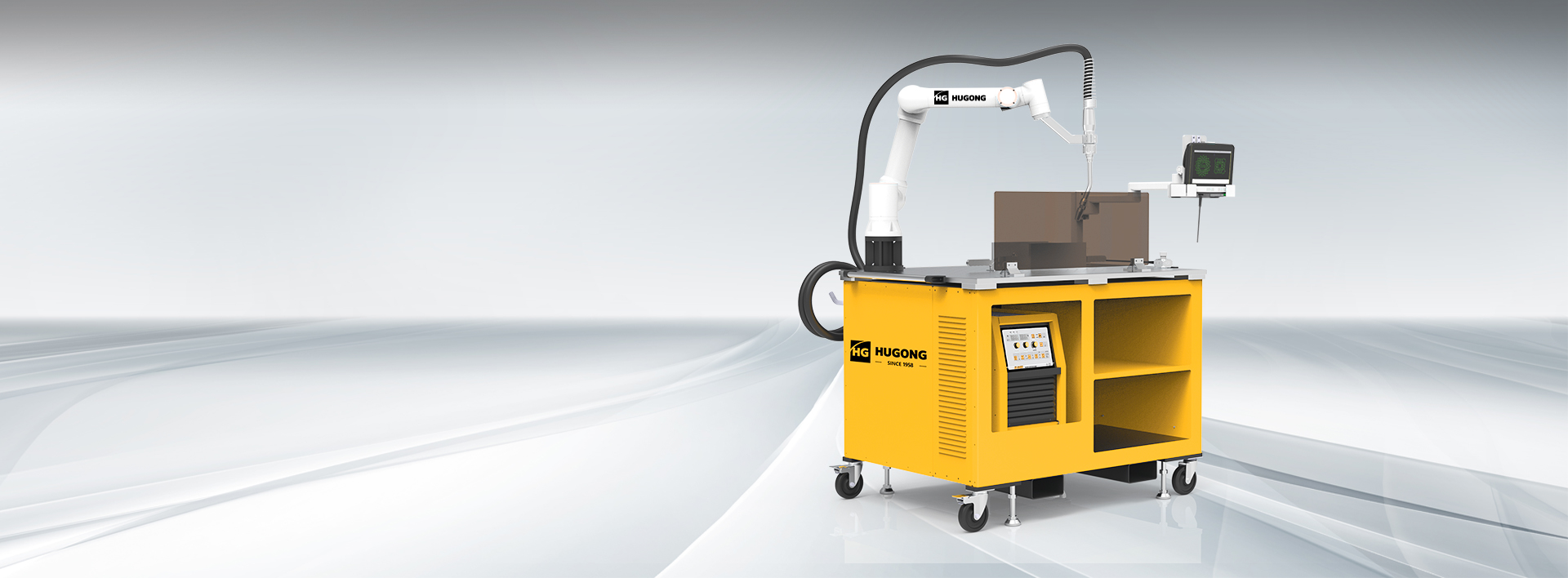

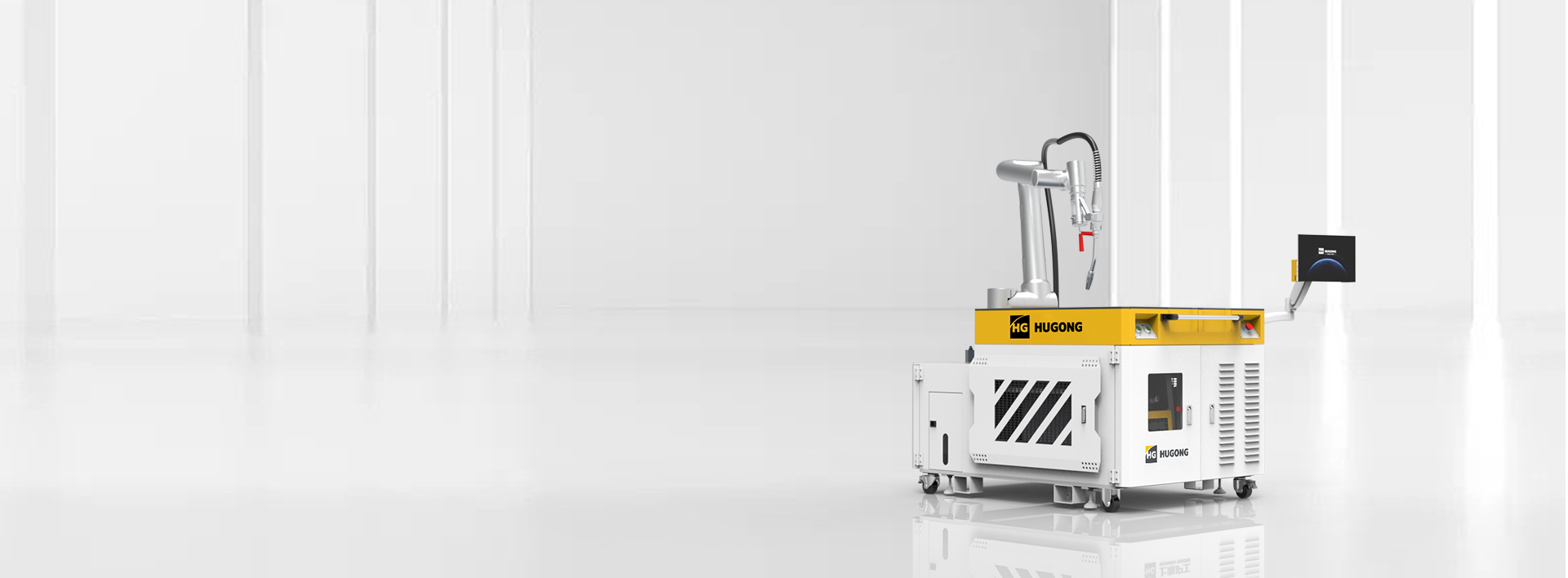

HGCR-603/905/1410

Precision Positioning

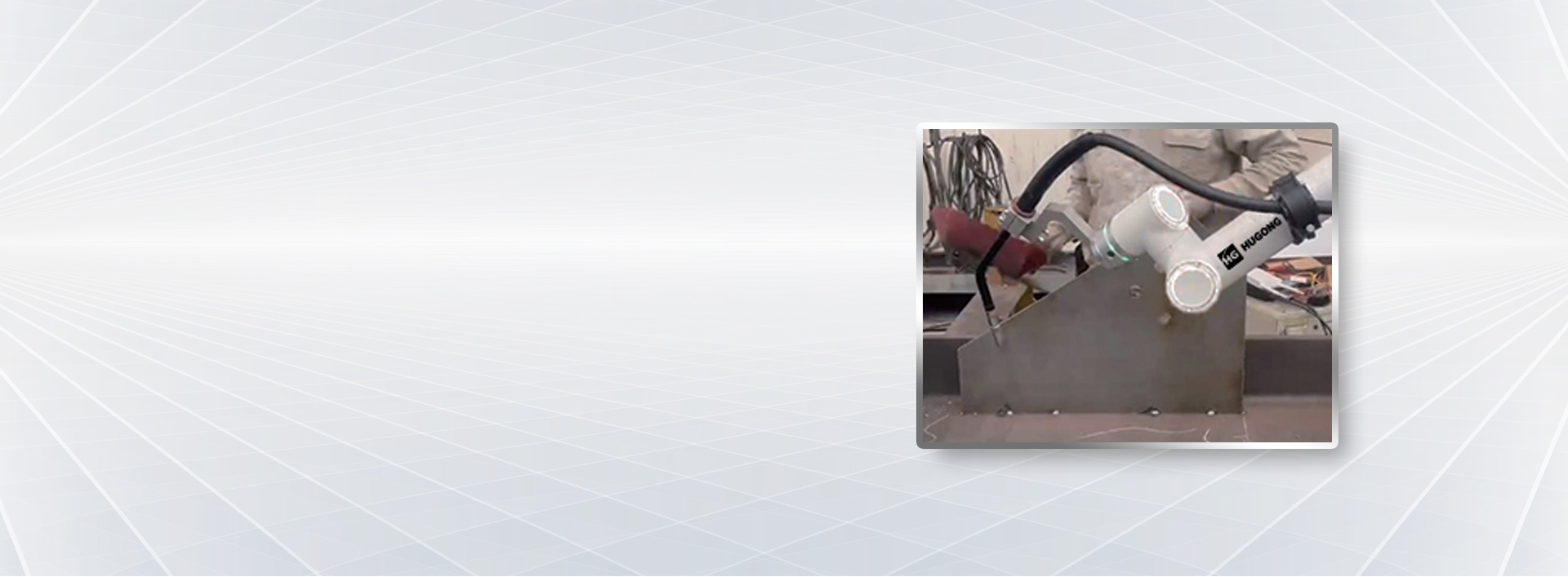

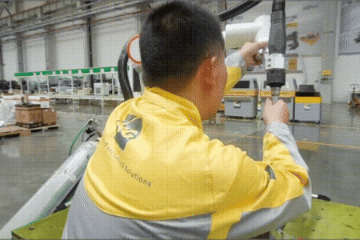

Accurate positioning of the weld seam and trajectory simulation by means of manual drag-and-drop demonstration.
Manually given welding process parameters.

Versatile Seam Support

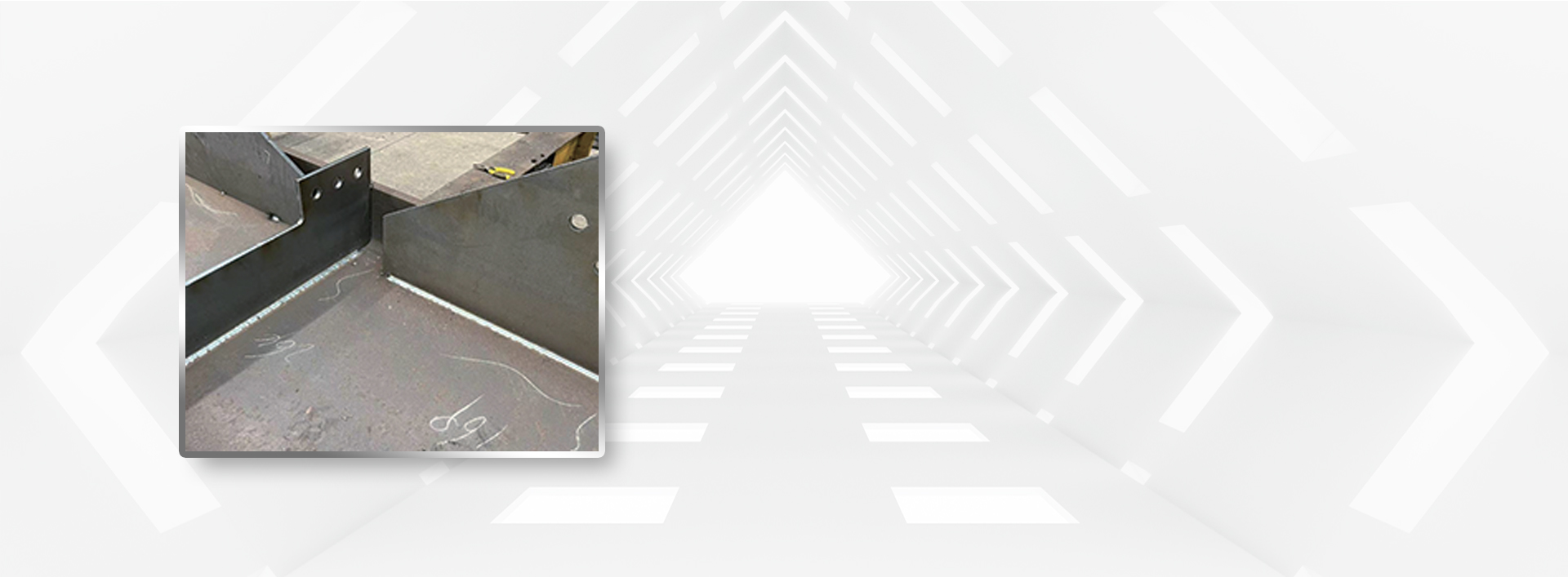

Supporting the positioning and process parameters of prefabricated multiple welding seams.

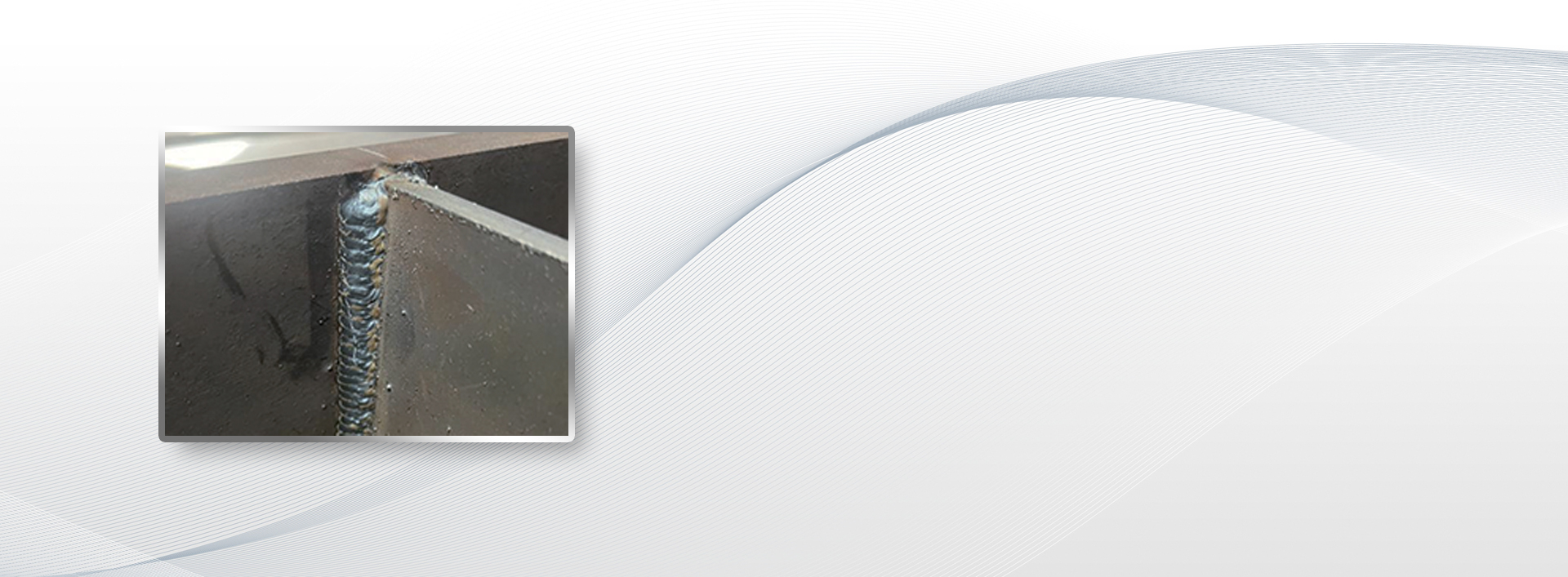

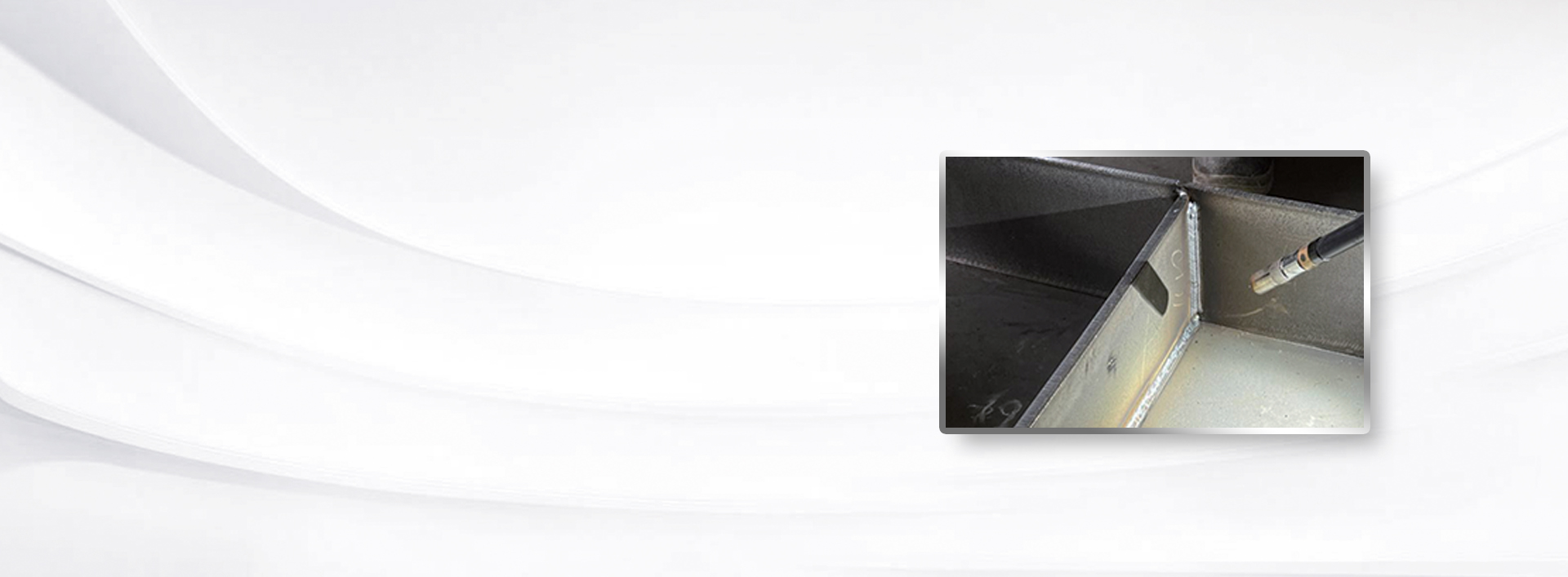

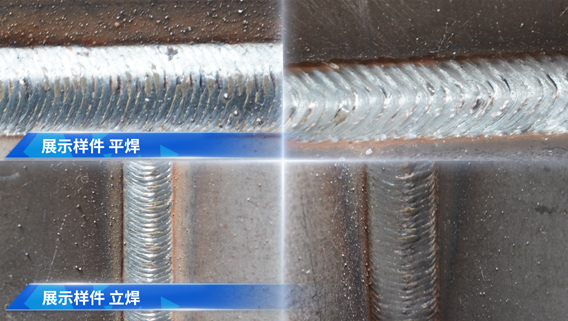

Support the types of straight weld, fillet weld, fillet weld, splice weld and so on.

Advanced Welding Solutions

Supports multiple swing welding.

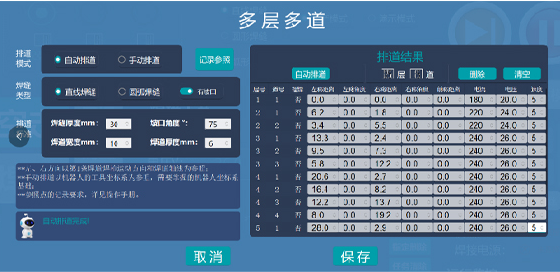

Support multi-layer multi-pass welding with manual assistance.
Supports repeated welding of small batch products.

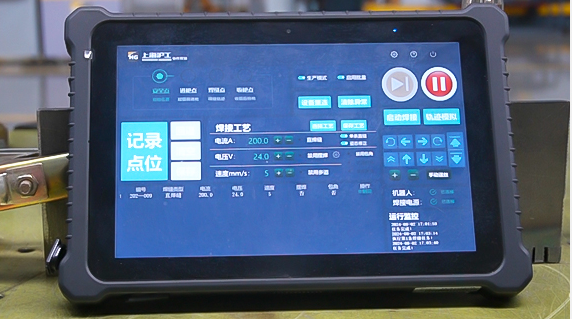

Intuitive Smart Monitoring

Supports self-test, operation monitoring and manual wire feeding.
The system is simple to operate and easy to learn.

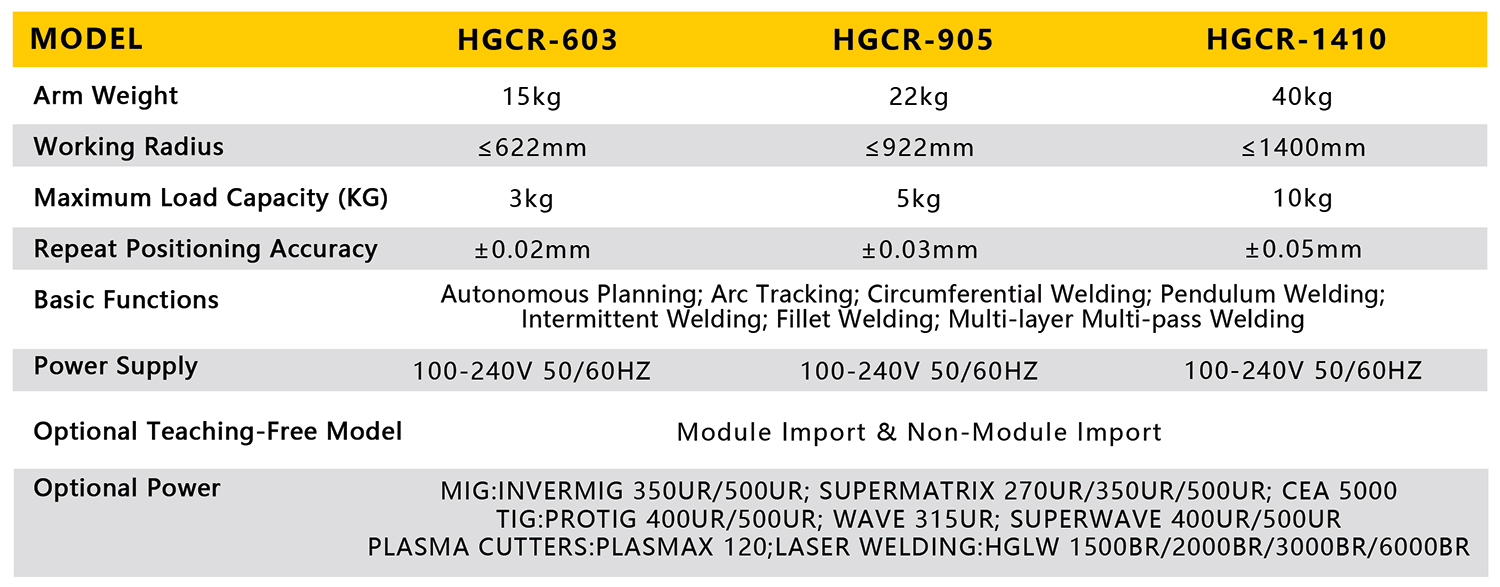

Model	HGCR-0603A/0603B	HGCR-0905A/0905B	HGCR-1410A/1410B
Arm Weight	15kg	22kg	40kg
Working Radius	≤622mm	≤922mm	≤1400mm
Maximum Load Capacity (KG)	3kg	5kg	10kg
Repeat Positioning Accuracy	+0.02mm	+0.03mm	+0.04mm
Basic Functions	Autonomous Planning; Arc Tracking; Circumferential Welding; Pendulum Welding;Intermittent Welding; Fillet Welding; Multi-layer Multi-pass Welding
Power Supply Access	100-240V 50/60HZ	100-240V 50/60HZ	100-240V 50/60HZ
Optional Teaching-Free Model	Module Import & Non-Module Import
