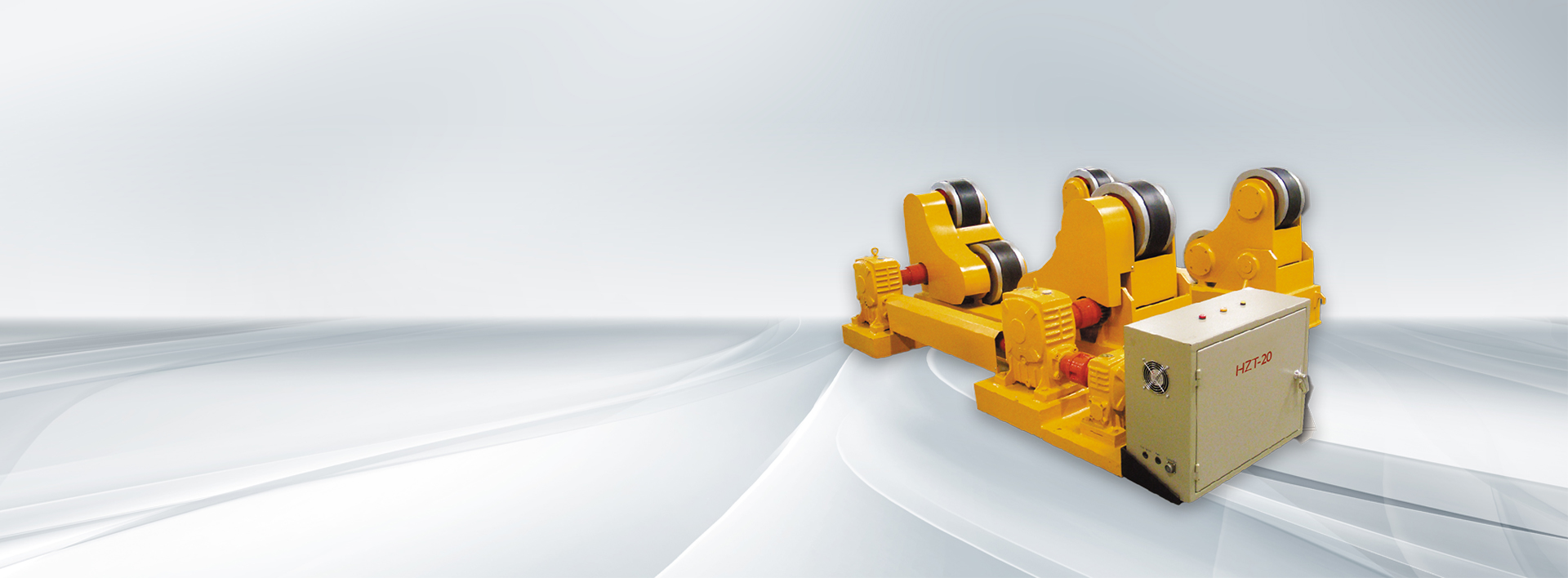

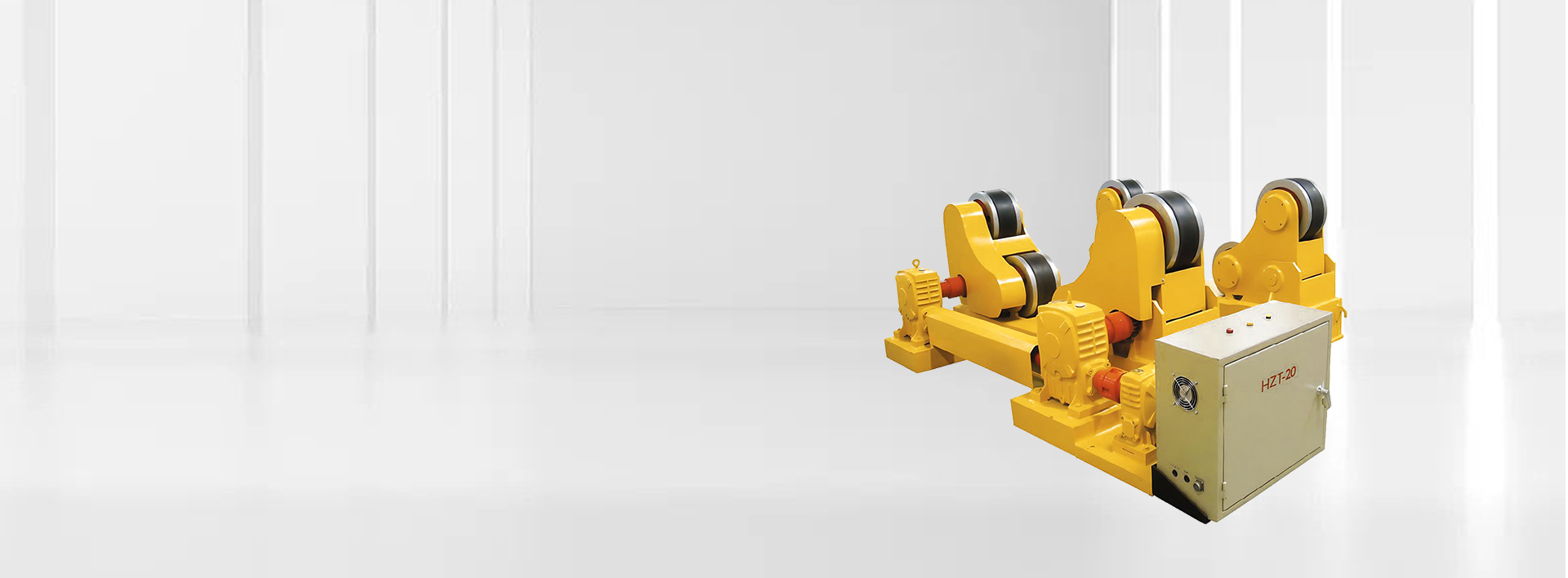

HZT Series

Longitude & Girth Seam Welding

Accomplish work piece inside longitude seam welding or outside seam girth welding.

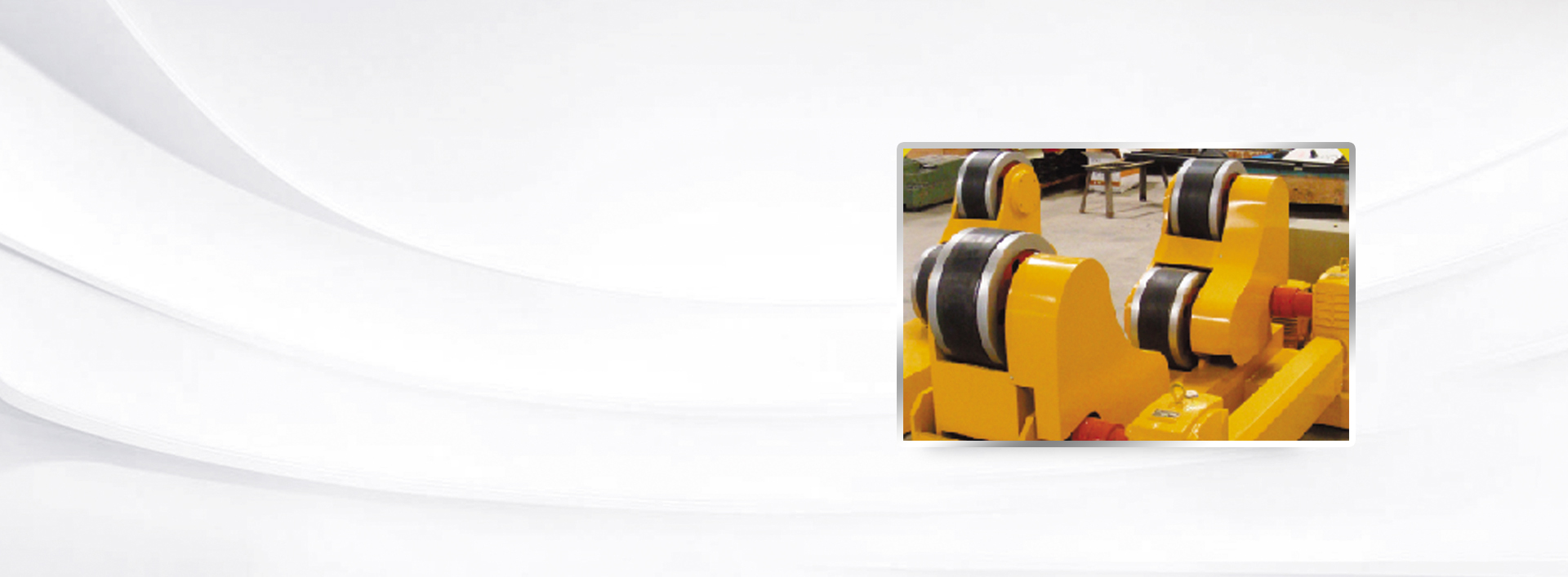

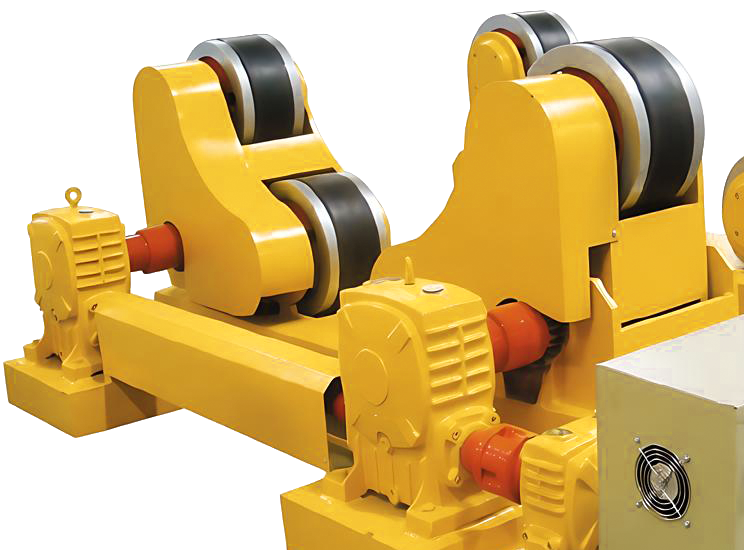

Four-Wheel Drive with Gear Meshing

Four roller gear mesh completely on mainframe, four-wheel drive.

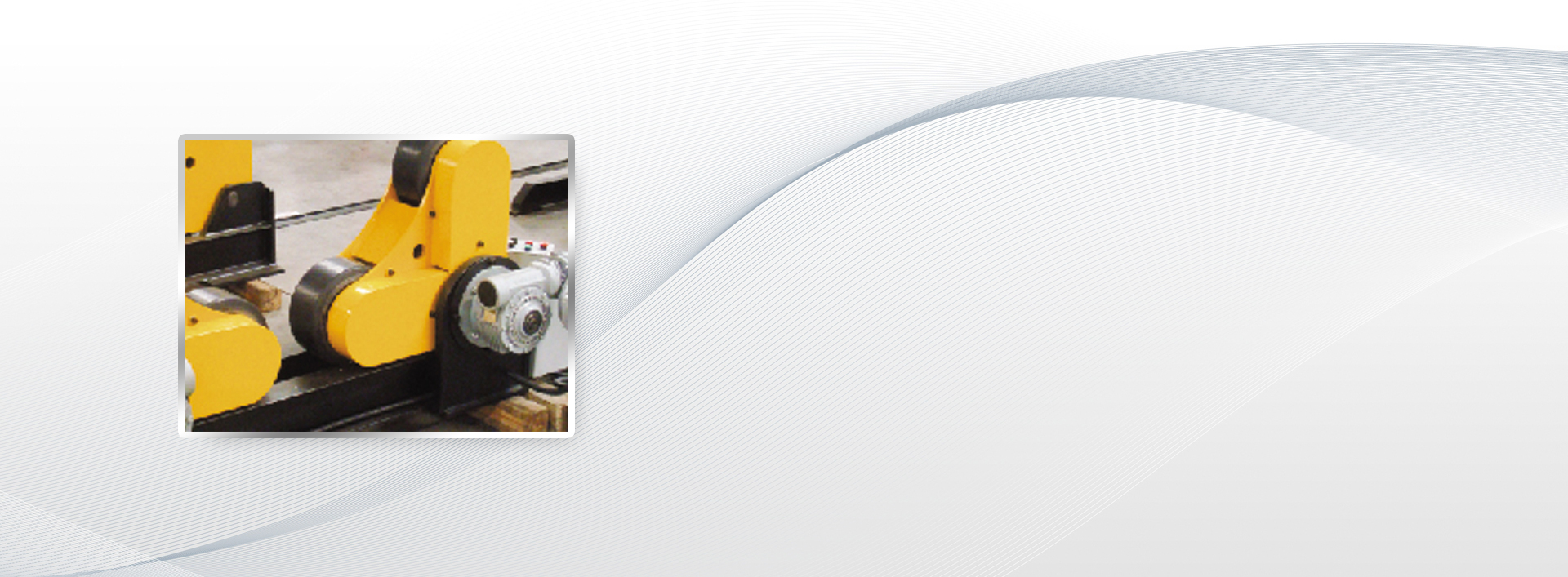

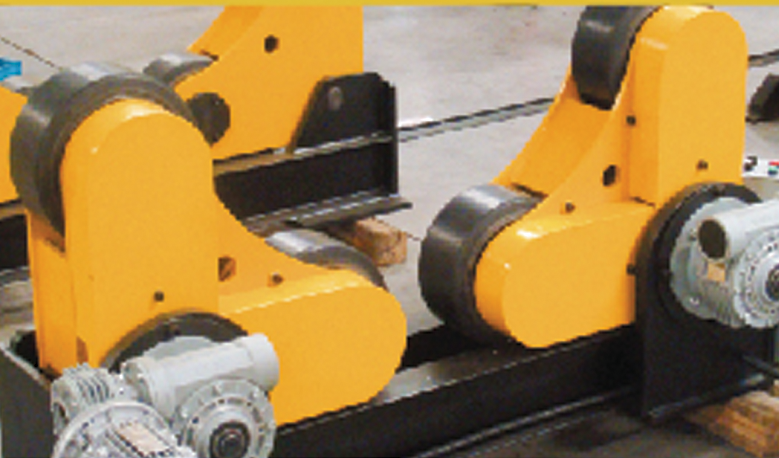

Pivot Angle Auto-Tuning

Pivot angle automatically tuning according workpiece diameter, no need manual adjustment.

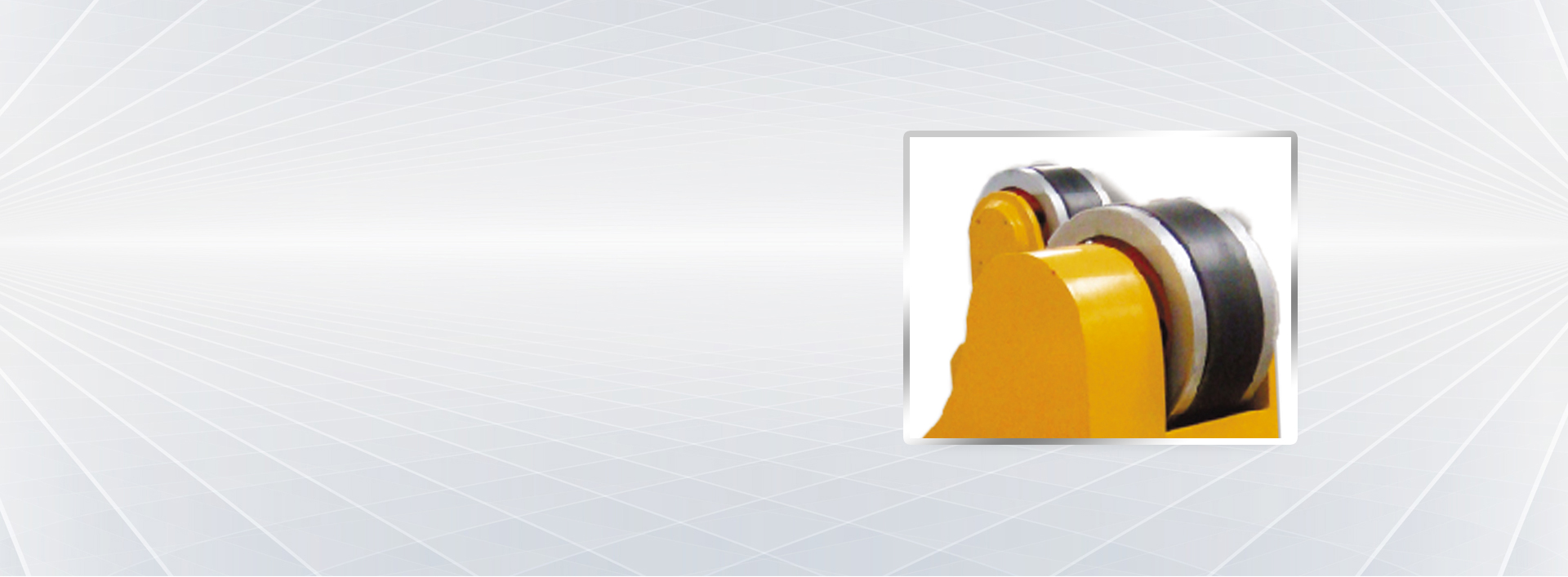

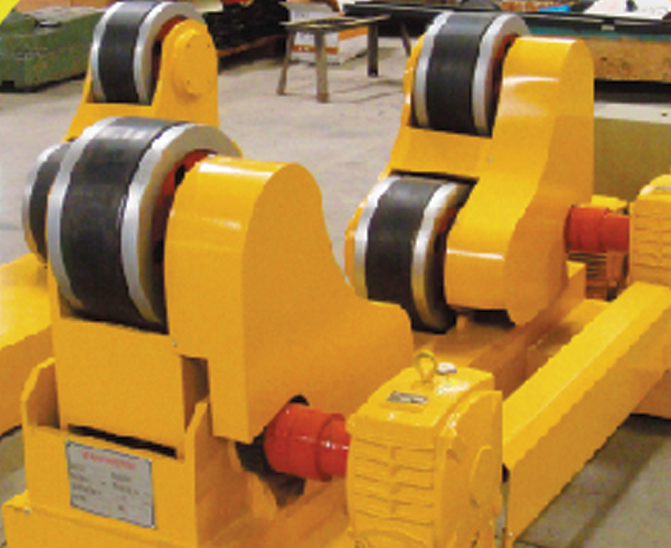

Steel-Rubber Assembly Roller

Steel and rubber assembly roller with heavy carrying and driving capacity.

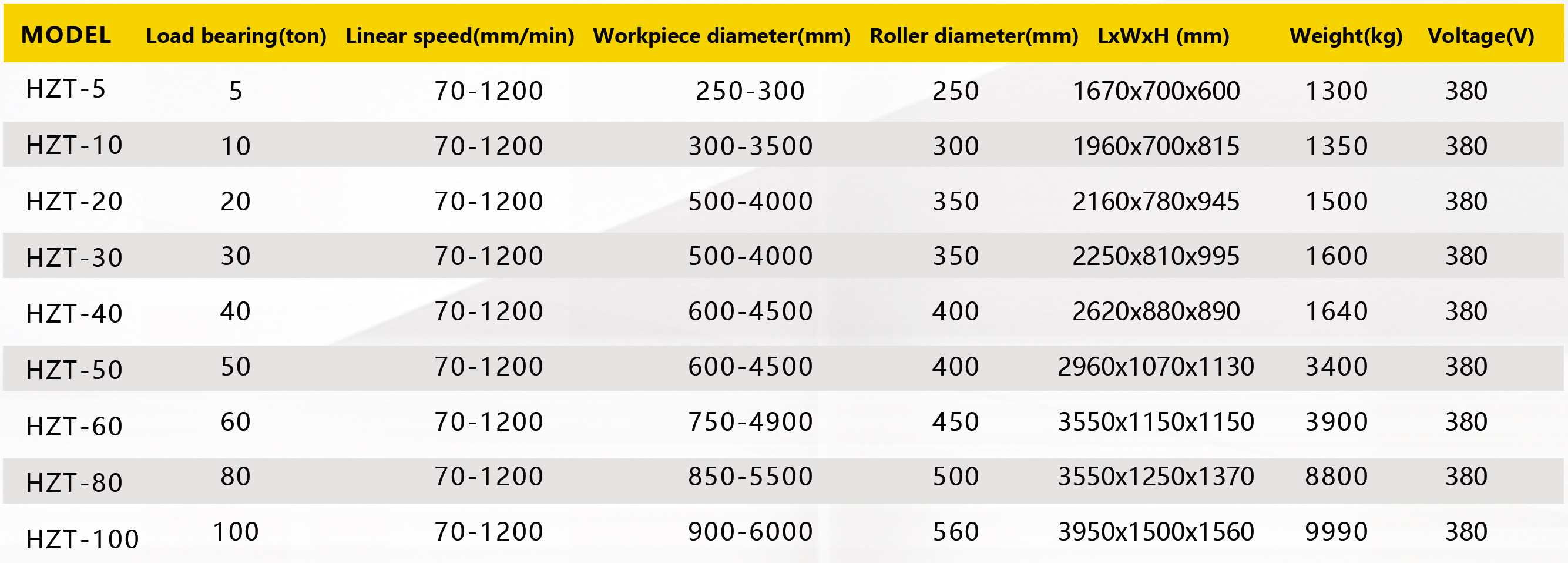

Model	Load bearing(ton)	Linear speed(mm/min)	Workpiece diameter(mm)	Roller diameter(mm)	LxWxH (mm)	Weight(kg)	Voltage(V)
HZT-5	5	70-1200	250-300	250	1670x700x600	1300	380
HZT-10	10	70-1200	300-3500	300	1960x700x815	1350	380

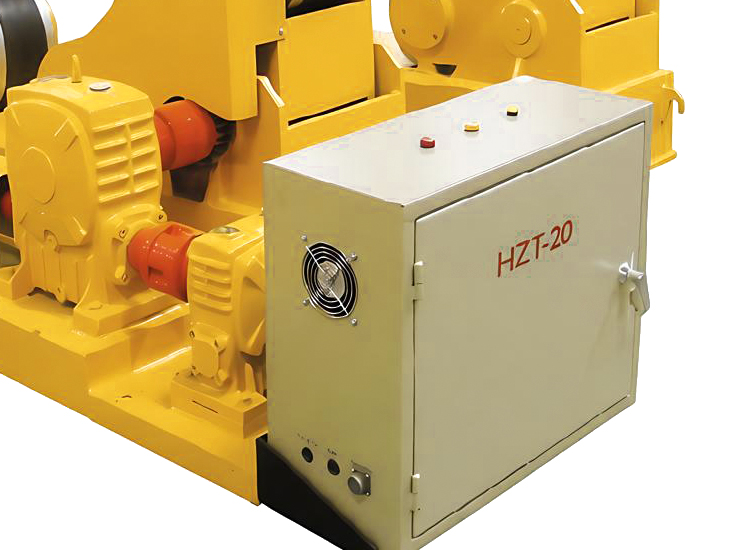

HZT-20	5	70-1200	500-4000	350	2160x780x945	1500	380
HZT-30	30	70-1200	500-4000	350	2250x810x995	1600	380
HZT-40	40	70-1200	600-4500	400	2620x880x890	1640	380
HZT-50	50	70-1200	600-4500	400	2960x1070x1130	3400	380
HZT-60	60	70-1200	750-4900	450	3550x1150x1150	3900	380
HZT-80	80	70-1200	850-5500	500	3550x1250x1370	880	380
HZT-100	100	70-1200	900-6000	560	3950x1500x1560	9990	380
