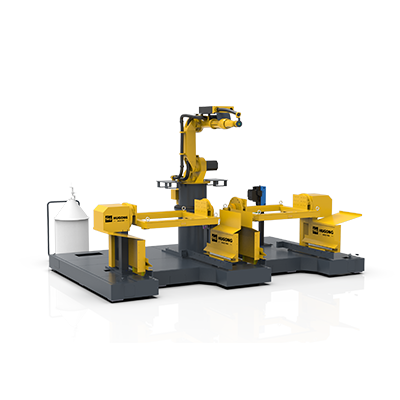

HGR-T series

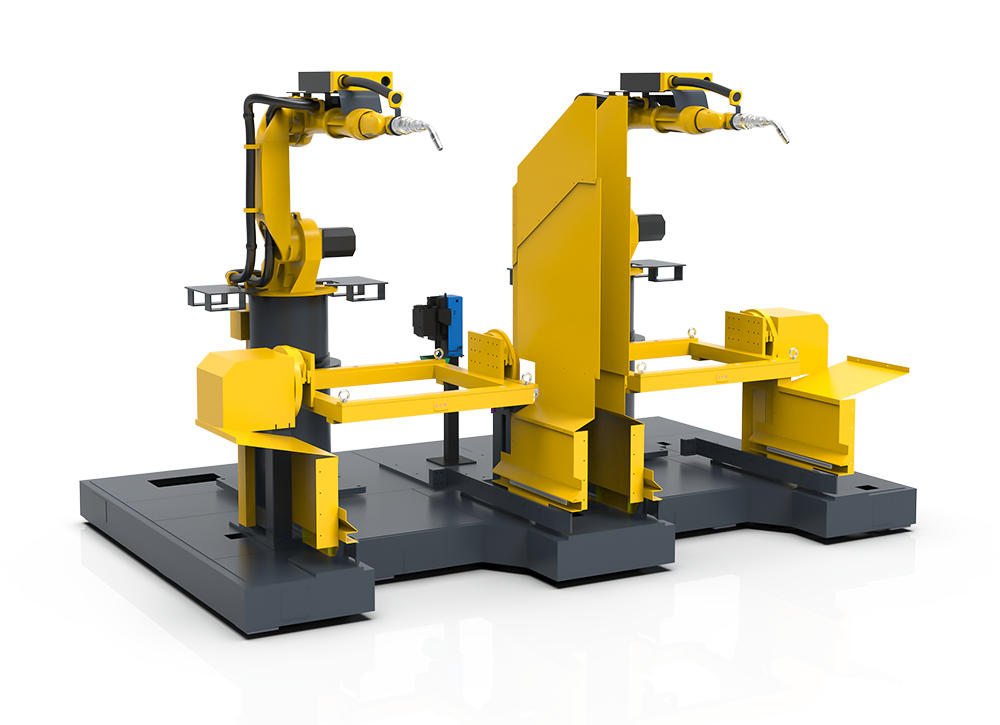

Dual-Station Synchronization

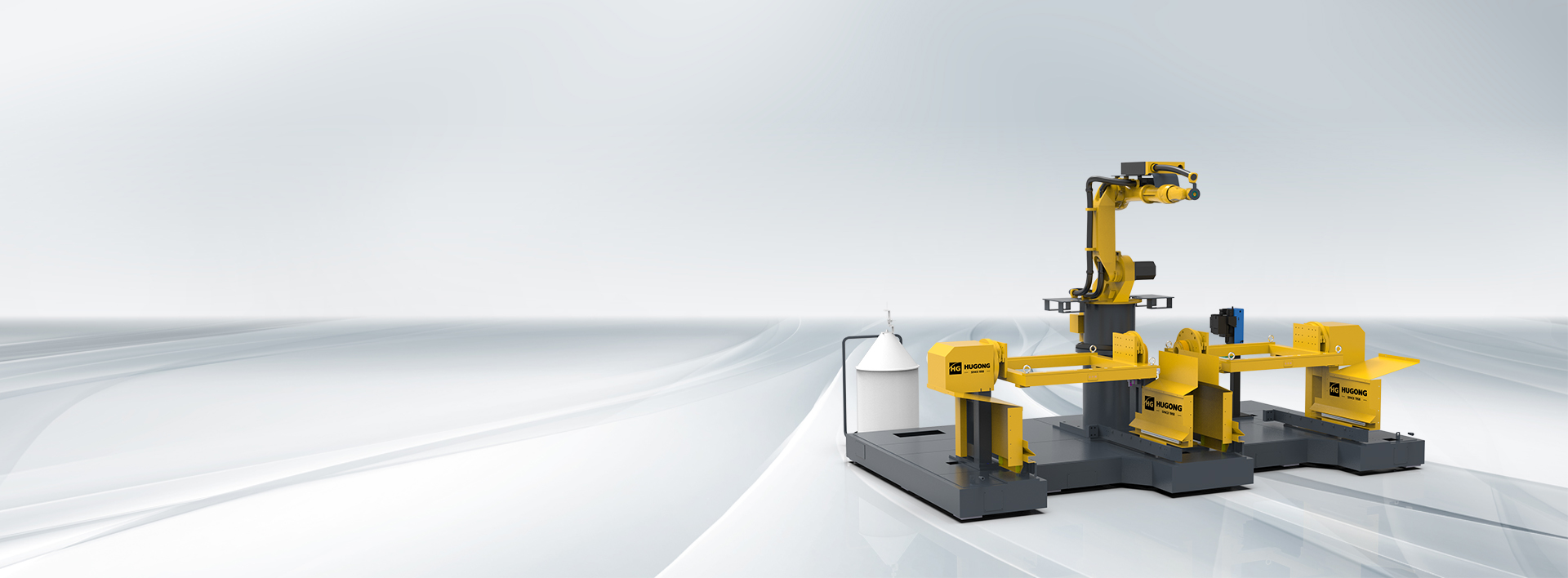

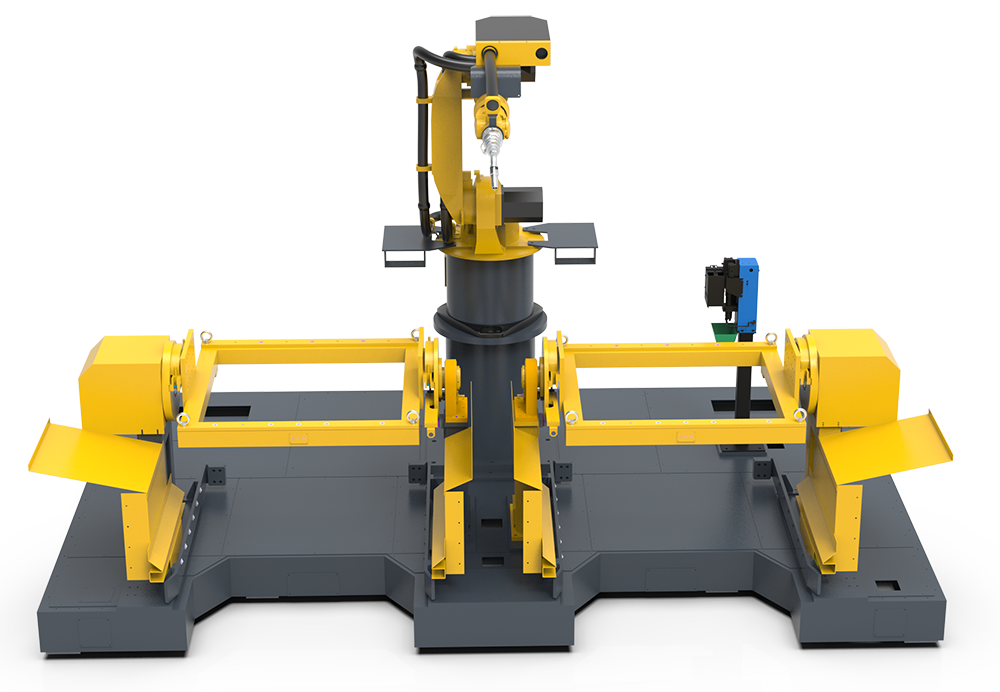

T-type workstation adopts left and right double-station arrangement, the robot (welding) and the ope-rator (loading and unloading) work alternately between the two stations. This way can avoid or reduce the robot waiting time and improve productivity.

Omni-Directional Welding

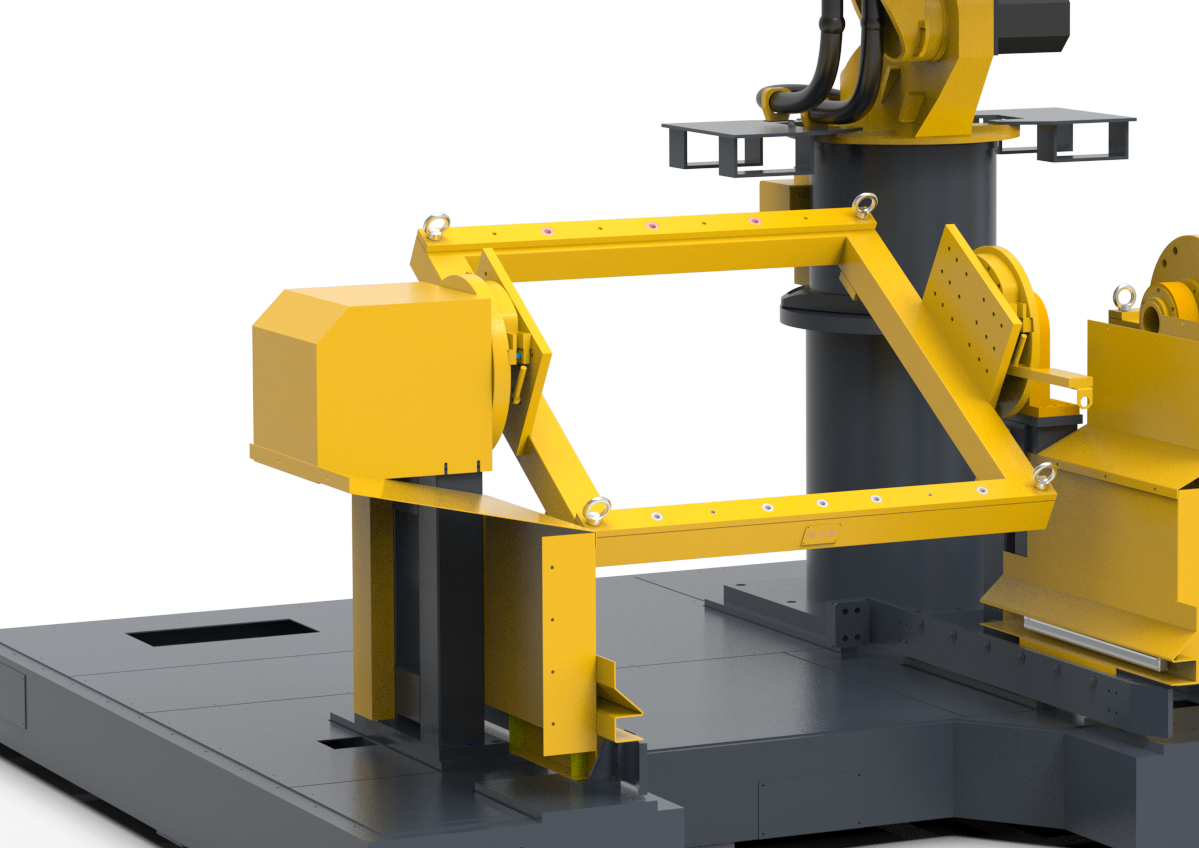

The workstation is equipped with an external axis vertical turnover indexer, which can coordinate the robot to complete the welding of weld seams in all angular directions.

Compact Production

Suitable for the production of products with length less than 1m and width less than 1.5m.

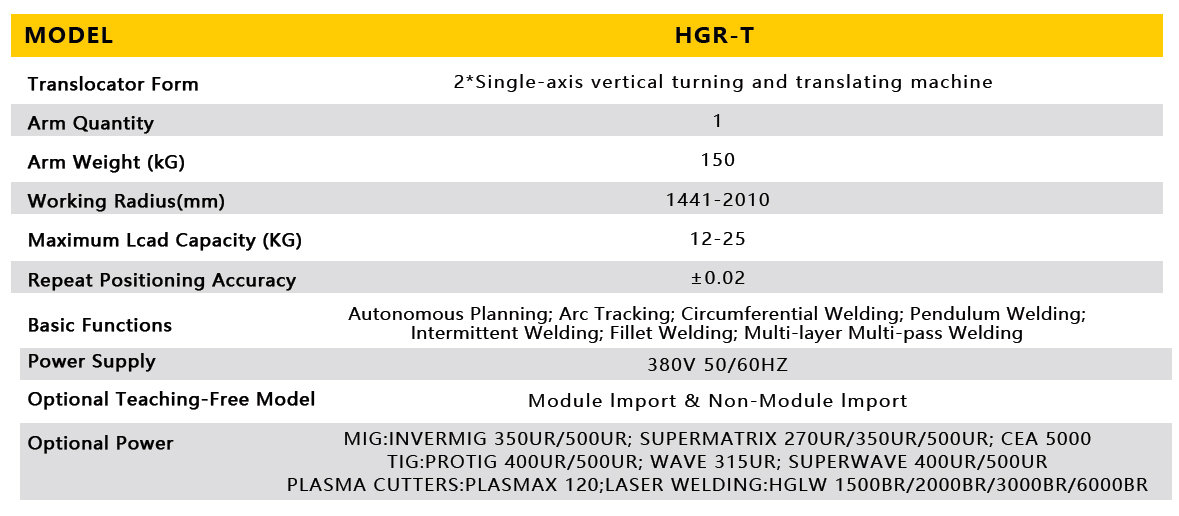

Model	HGR-T
Translocator Form	‌2*Single-axis vertical turning and translating machine
Arm Quantity	1
Arm Weight (KG)	150
Working Radius(mm)	1441-2010
Maximum Lcad Capacity (KG)	12-25
Repeat Positioning Accuracy	±0.02
Basic Functions	Autonomous Planning; Arc Tracking; Circumferential Welding; Pendulum Welding;Intermittent Welding; Fillet Welding; Multi-layer Multi-pass Welding
Power Supply	380V 50/60HZ
Optional Teaching-Free Model	Module Import & Non-Module Import
Optional Power	MIG:INVERMIG 350UR/500UR; SUPERMATRIX 270UR/350UR/500UR; CEA 5000TIG:PROTIG 400UR/500UR; WAVE 315UR; SUPERWAVE 400UR/500URPLASMA CUTTERS:PLASMAX 120;LASER WELDING:HGLW 1500BR/2000BR/3000BR/6000BR
