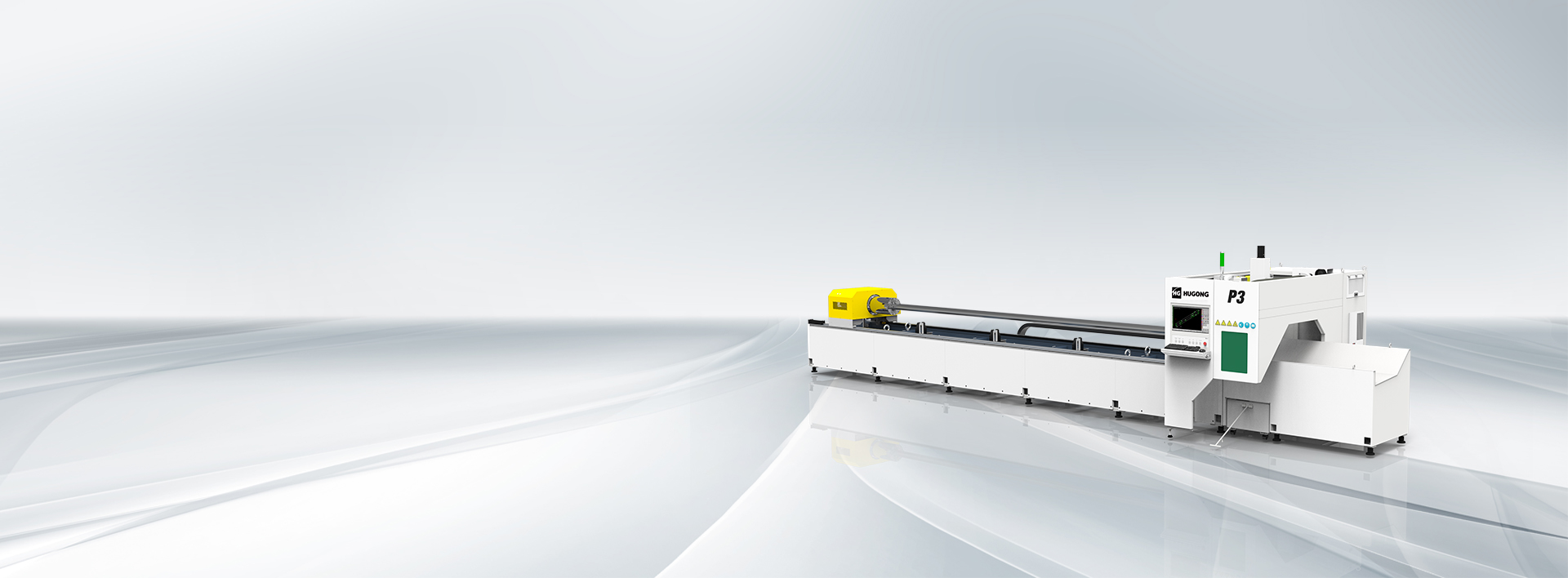

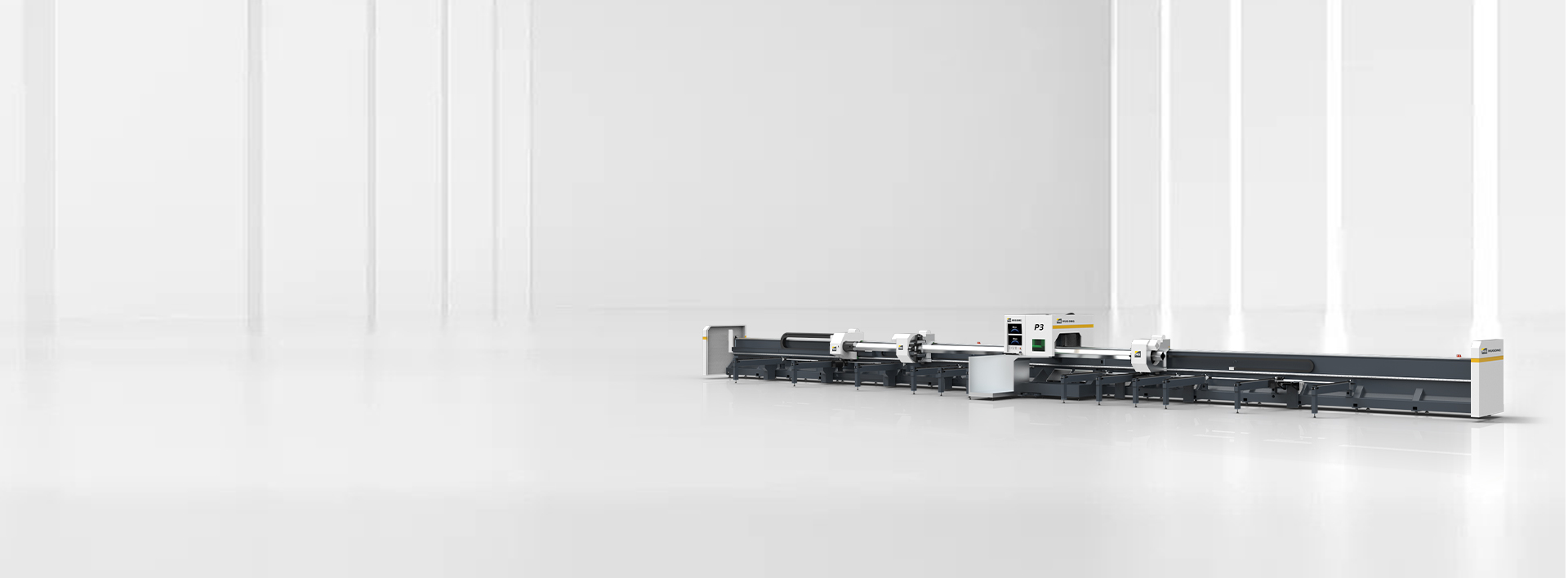

HGP3 SERIES

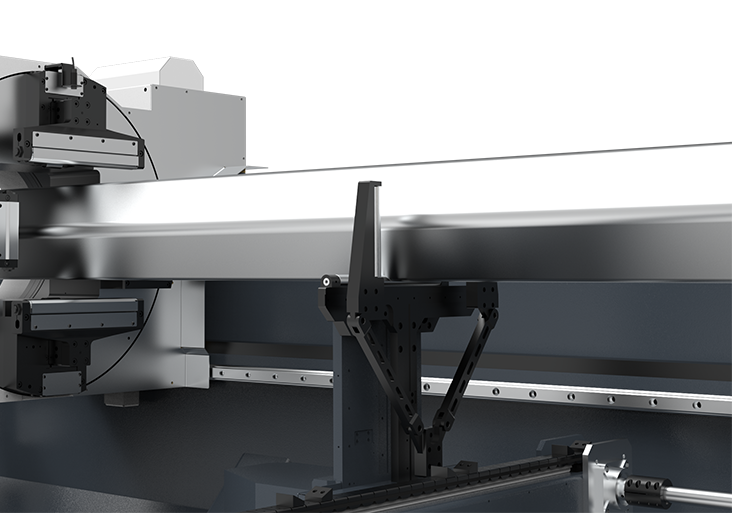

Servo-Avoidance Support

Servo follow-up support device with automatic avoidance function has been specially designed for the processing of slender pipes, which can effectively suppress the shaking caused by high-speed rotation of pipes and improve cutting accuracy.

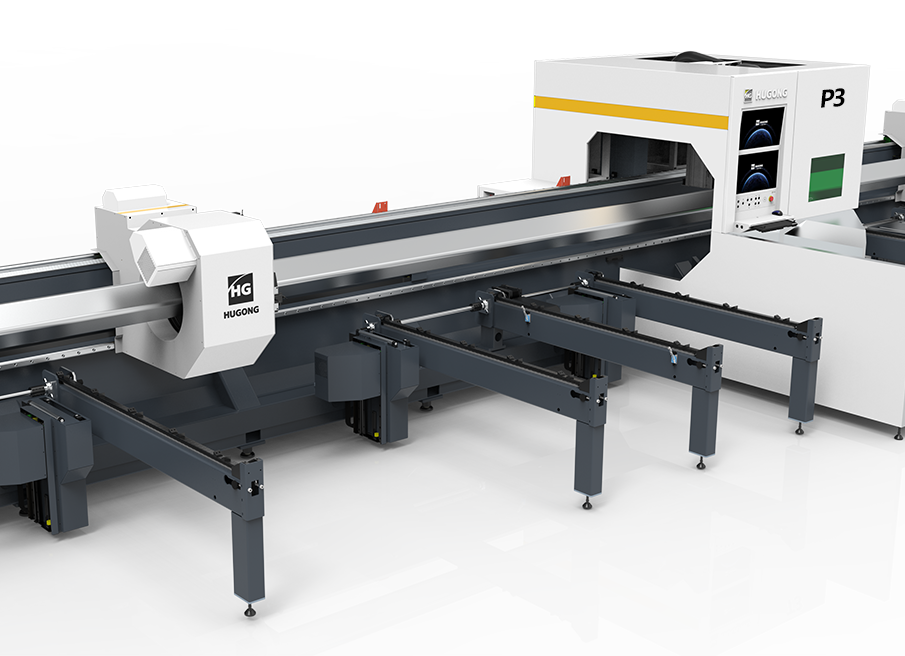

Semi-Auto Feeding

Multiple pipes are arranged in the feeding machine in advance, the cutting machine will control the feeding machine to automatically load raw materials according to the task progress. Realize semi-automatic continuous cutting.

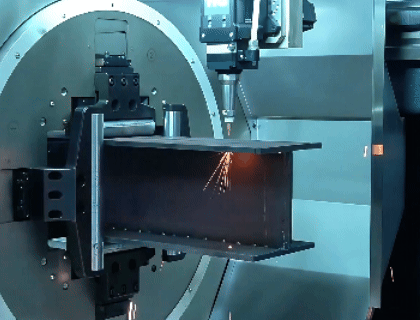

Multi-Func Beveling

Equipped with various cutting functions such as cutting, opening hole, and Beveling for irregular pipes.

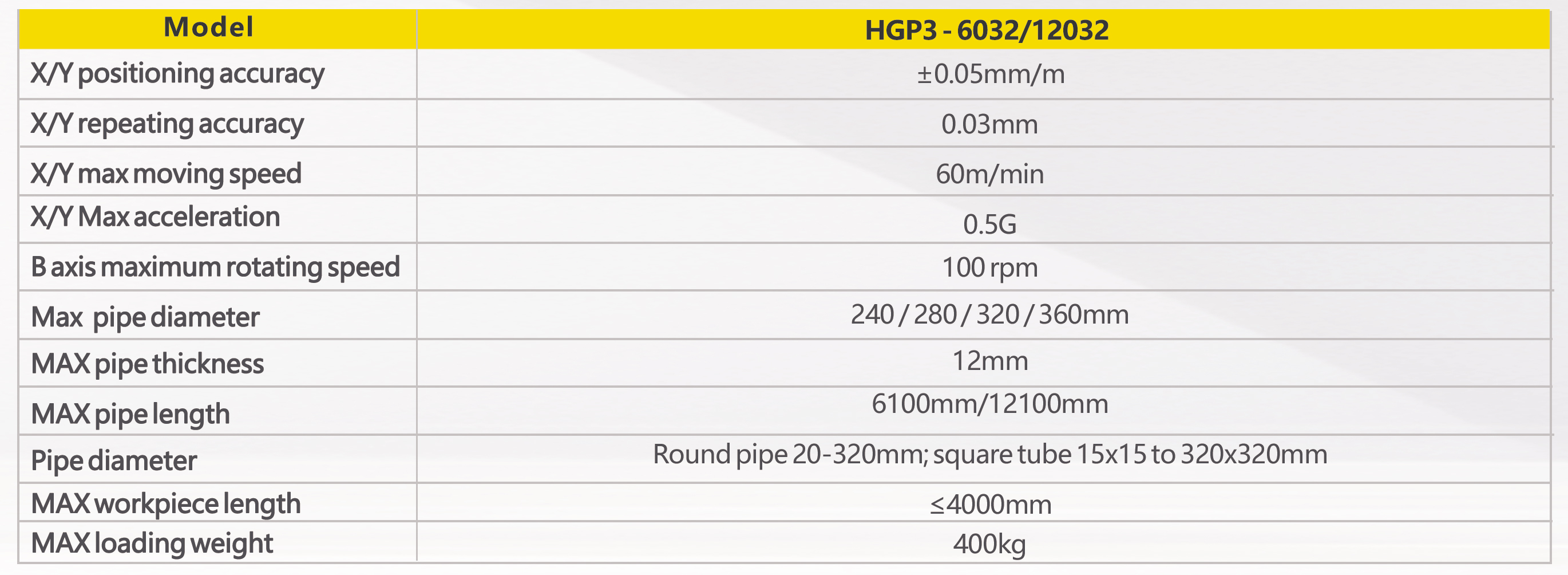

Model	HGP3
XY positioning accuracy	+0.05mm/m
XY repeating accuracy	0.03mm
XY max moving speed	60m/min
XY Max acceleration	0.5G
B axis maximum rotating speed	100 rpm
Max pipe diameter	240/280/320/360mm
MAX pipe thickness	12mm
MAX pipe length	6100mm/12100mm
Pipe diameter	Round pipe 20-320mm; square tube 15x15 to 320x320mm
MAX workpiece length	≤4000mm
MAX loading weight	400kg
