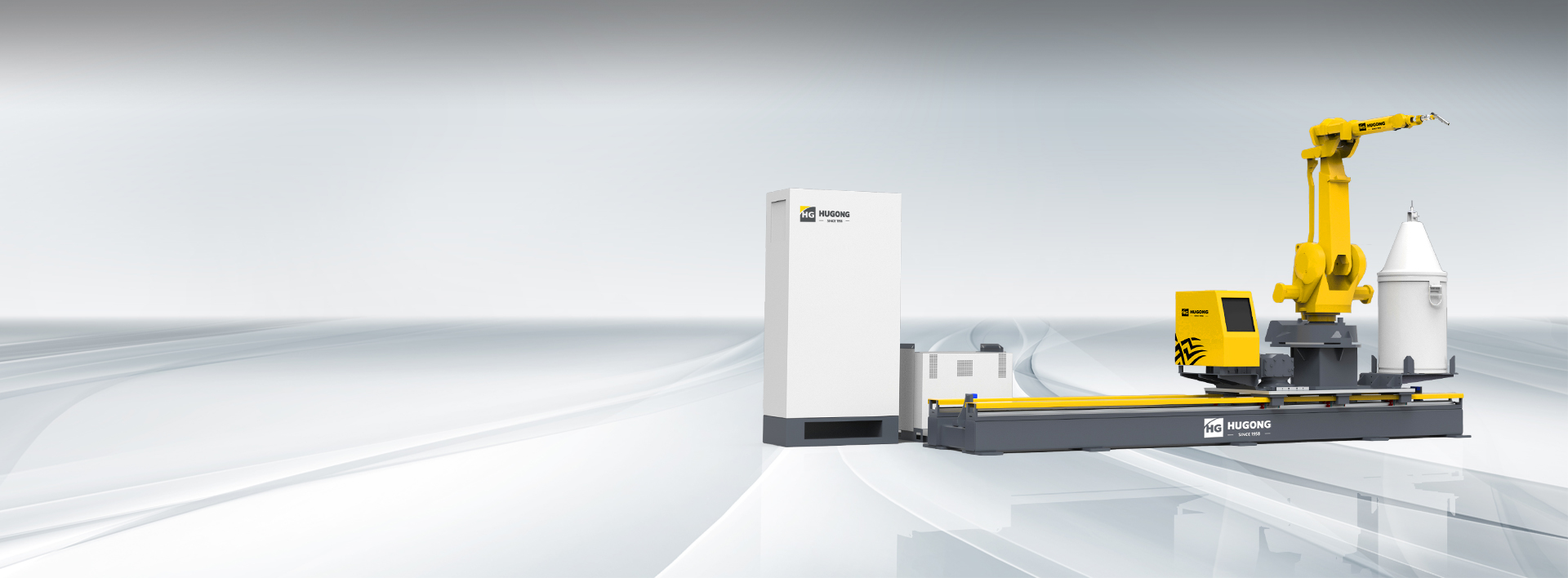

HGR-U series

Seven-Axis Mobility

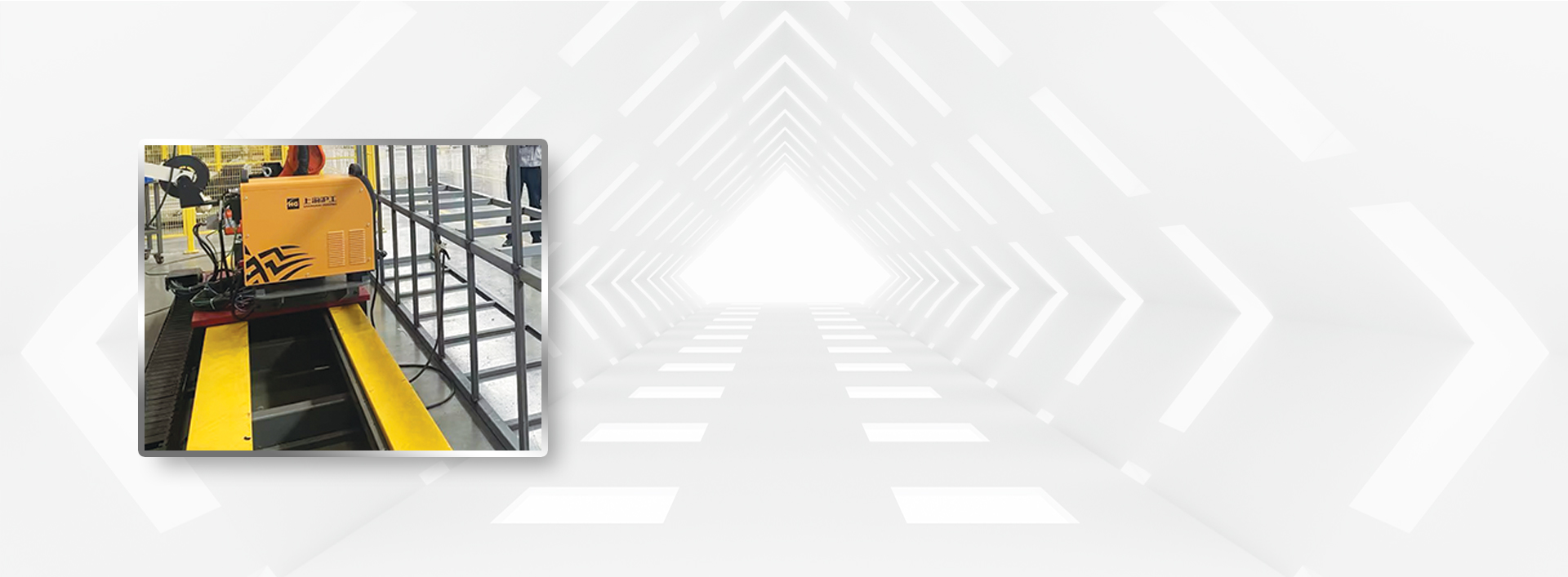

The robot adopts positive mounting + seven-axis traveling form, which can complete the welding of the workpiece within 2m in width.

Adaptive Configuration

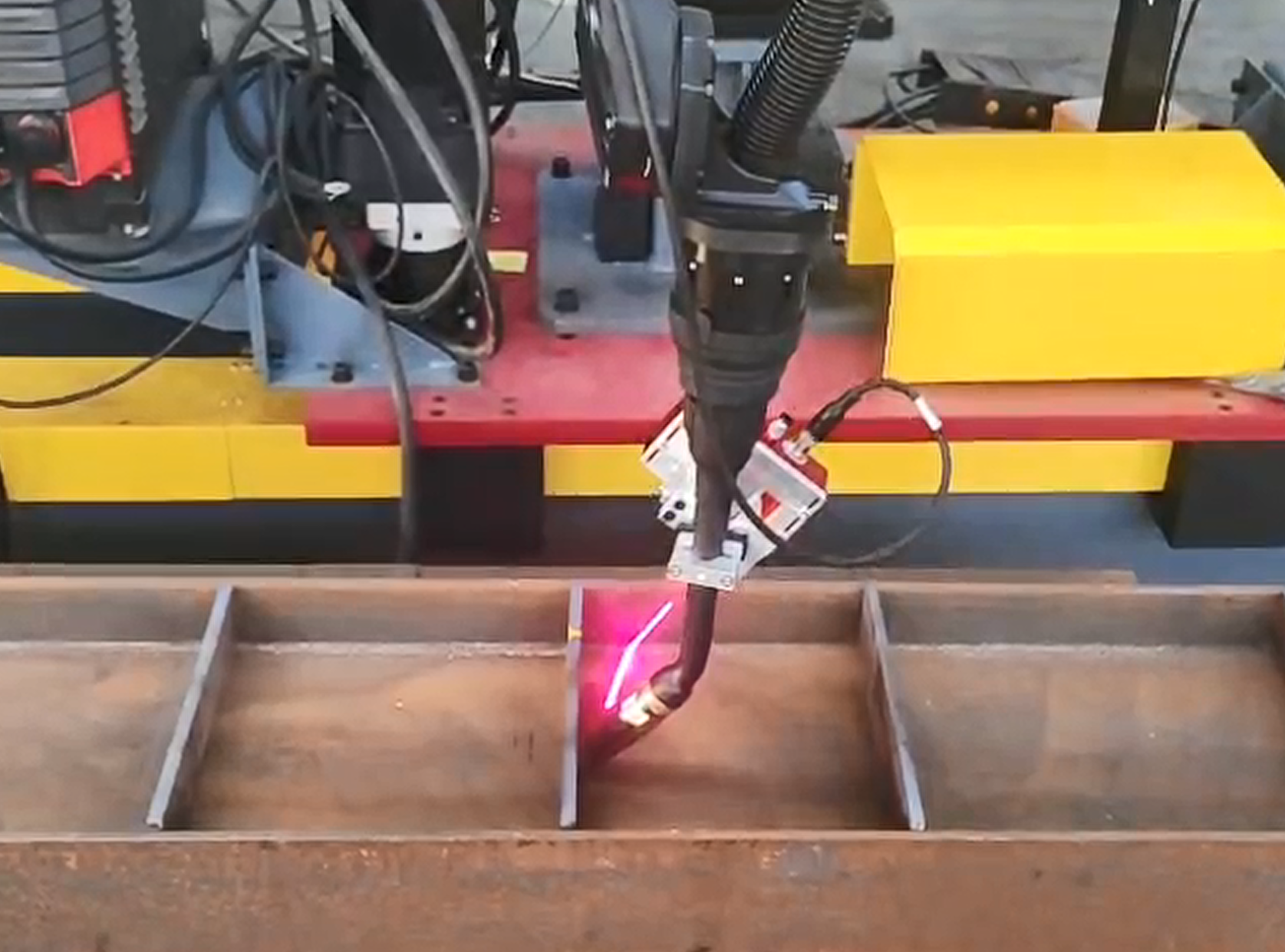

length direction according to the length of the workpiece configuration of different length seven-axis. At the same time, the robot is equipped with laser position-finding components, which reduces the pre- cision requirements of the workers' group.

Multi-Angle Welding

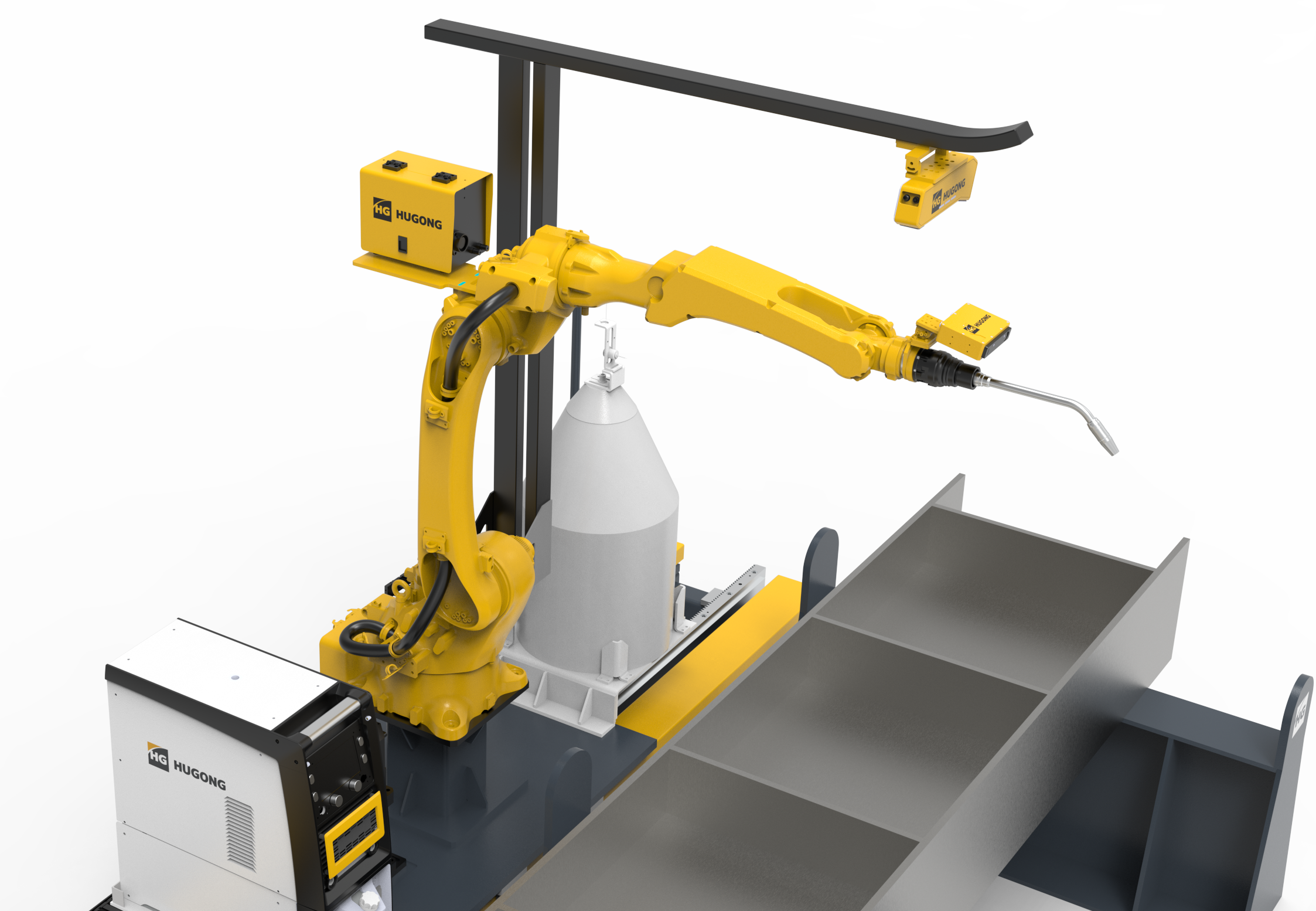

Optional single-axis vertical turnover indexer can coordinate the robot to complete the welding of workpieces with weld seams in various angle directions.

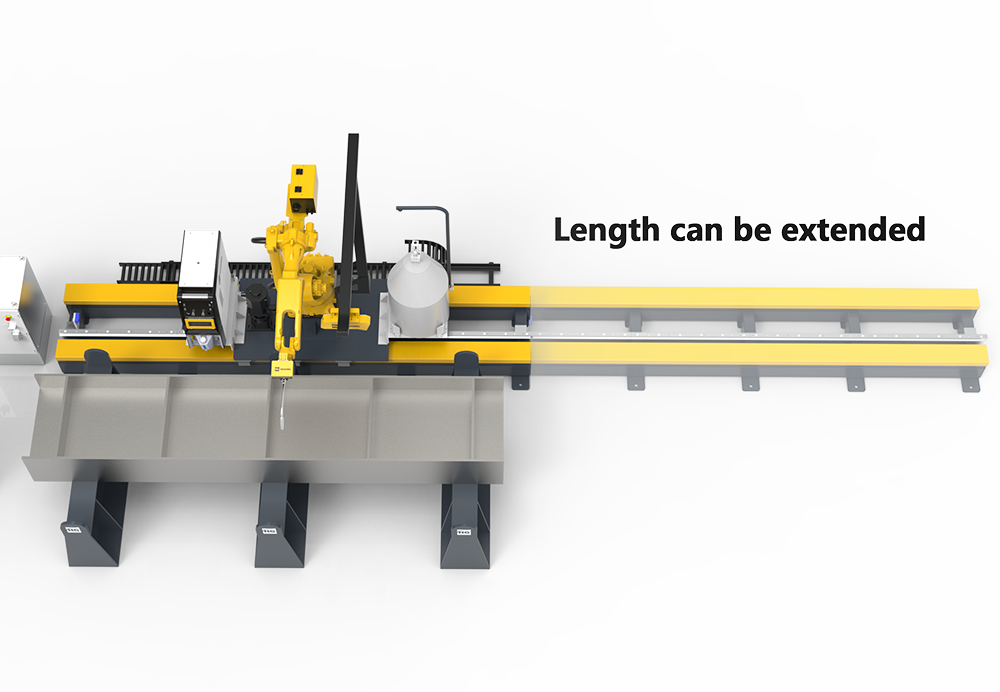

Scalable Expansion

The robot can be added on the seven-axis expansion to improve the production tempo and reduce the equipment footprint.

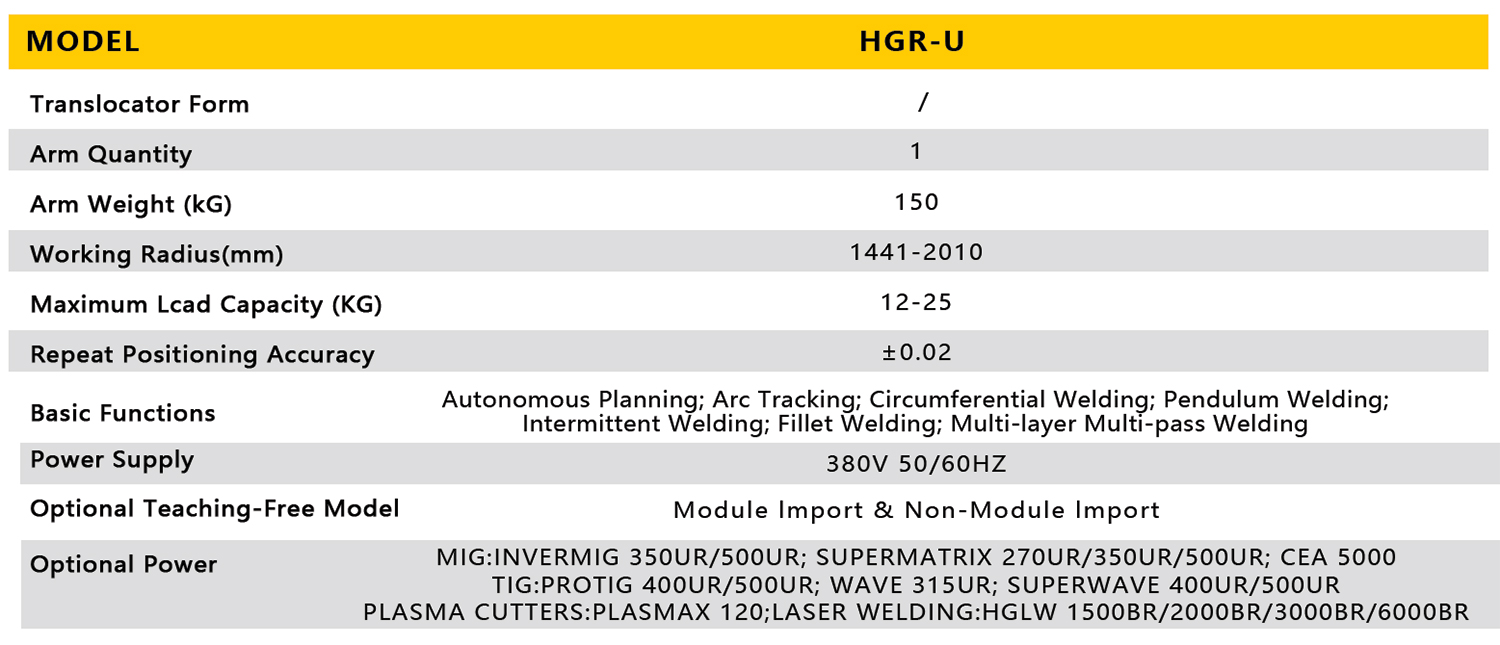

Model	HGR-U
Translocator Form	‌/
Arm Quantity	1
Arm Weight (KG)	150
Working Radius(mm)	1441-2010
Maximum Lcad Capacity (KG)	12-25
Repeat Positioning Accuracy	±0.02
Basic Functions	Autonomous Planning; Arc Tracking; Circmferential Welding; Pendulum Welding; Intermittent Welding; Fillet Welding; Multi-pass Welding;
Power Supply	380V 50/60HZ
Optional Teaching-Free Model	Module Import & Non-Module Import
Optional Power	MIG:INVERMIG 350UR/500UR; SUPERMATRIX 270UR/350UR/500UR; CEA 5000TIG:PROTIG 400UR/500UR; WAVE 315UR; SUPERWAVE 400UR/500URPLASMA CUTTERS:PLASMAX 120;LASER WELDING:HGLW 1500BR/2000BR/3000BR/6000BR
