HGR-HD series

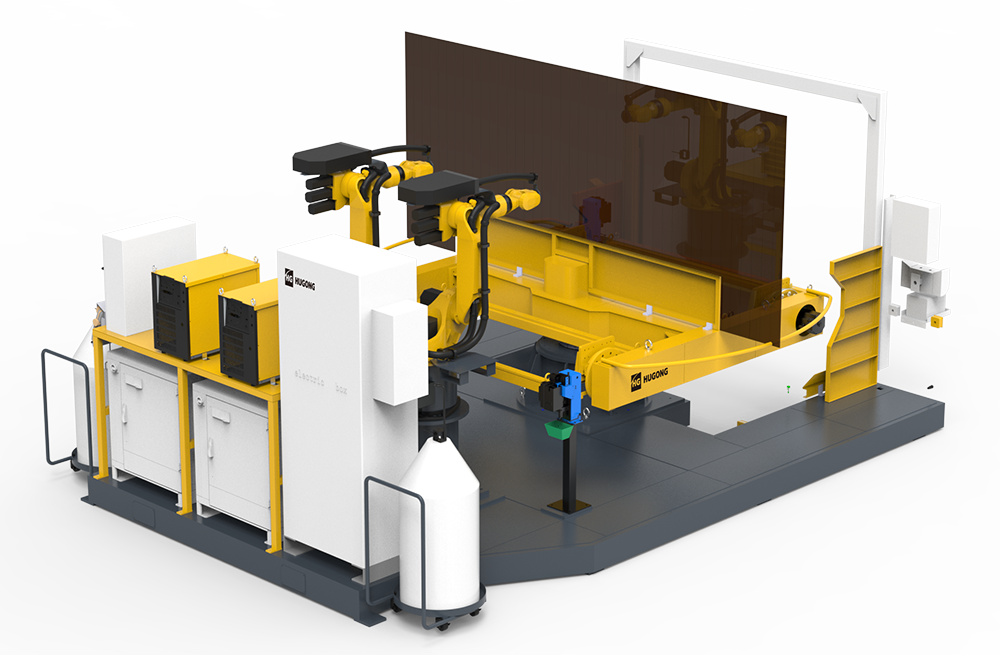

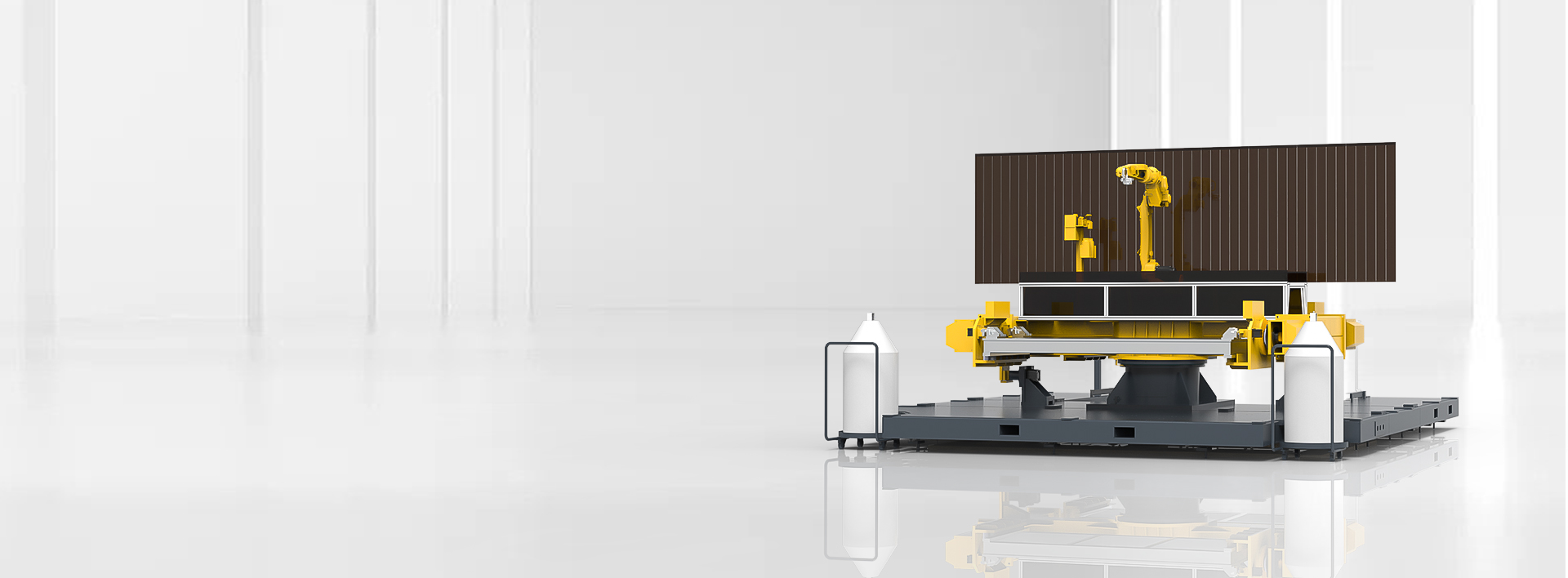

H-type three-axis rotary indexer

HD-type workstation adopts H-type three-axis rotary indexer arrangement, which realizes alternate work between robot (welding) and operator (loading and unloading) through the rotation of three-axis indexer. This way can avoid or reduce the robot waiting time, improve productivity, reduce labor non-essential walking, reduce the work intensity of workers.

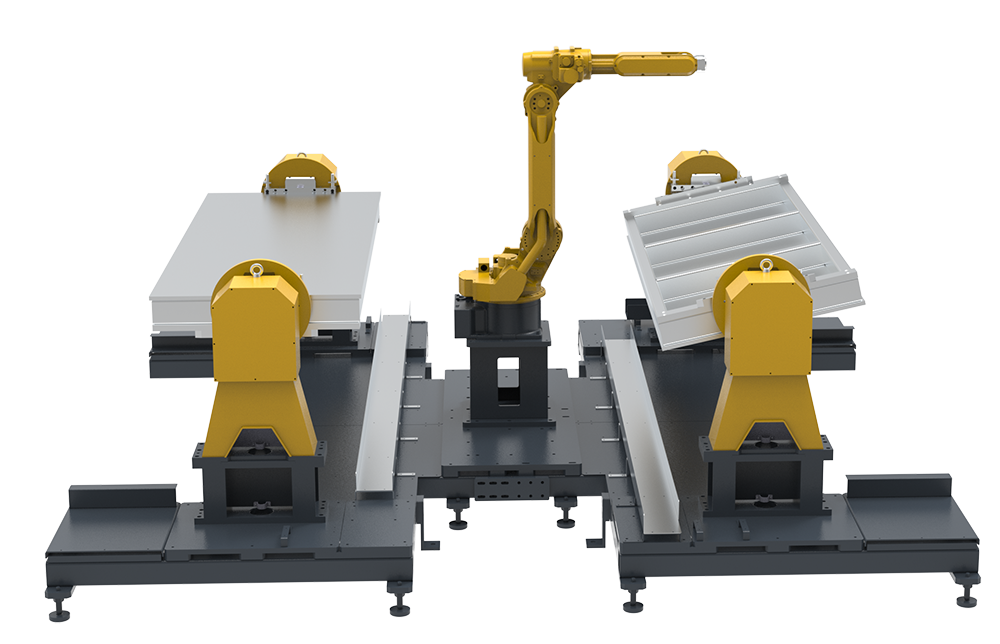

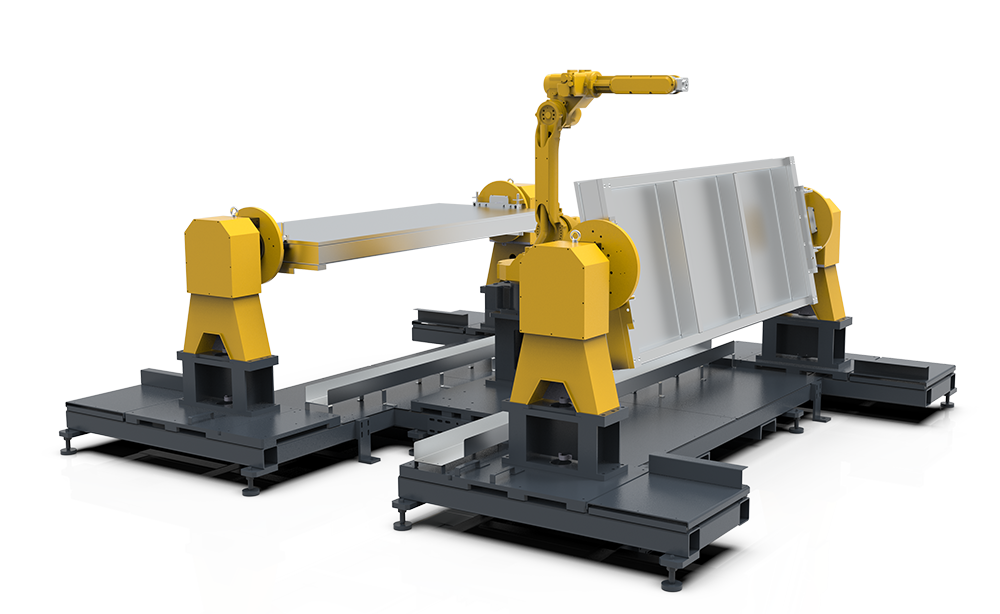

External axis turnover

The workstation is configured with external axis vertical turnover indexer, which can coordinate the robot to complete the welding of weld in all angle directions.

Size adaptation

Single workstation is suitable for the production of products with length less than 1.8m and width less than 1.Sm: double workstation is suitable for the production of products with length less than 4m and width less than 1.Sm.

Space-saving layout

HD-type workstation and H-type workstation is different from the robot layout position, H-type workstation robot layout on the side of the changer, the fixed position remains unchanged, HD-type robot layout on the changer, with the robot to rotate together, HD-type workstations are more space-saving, reduce the production site area.
